Description

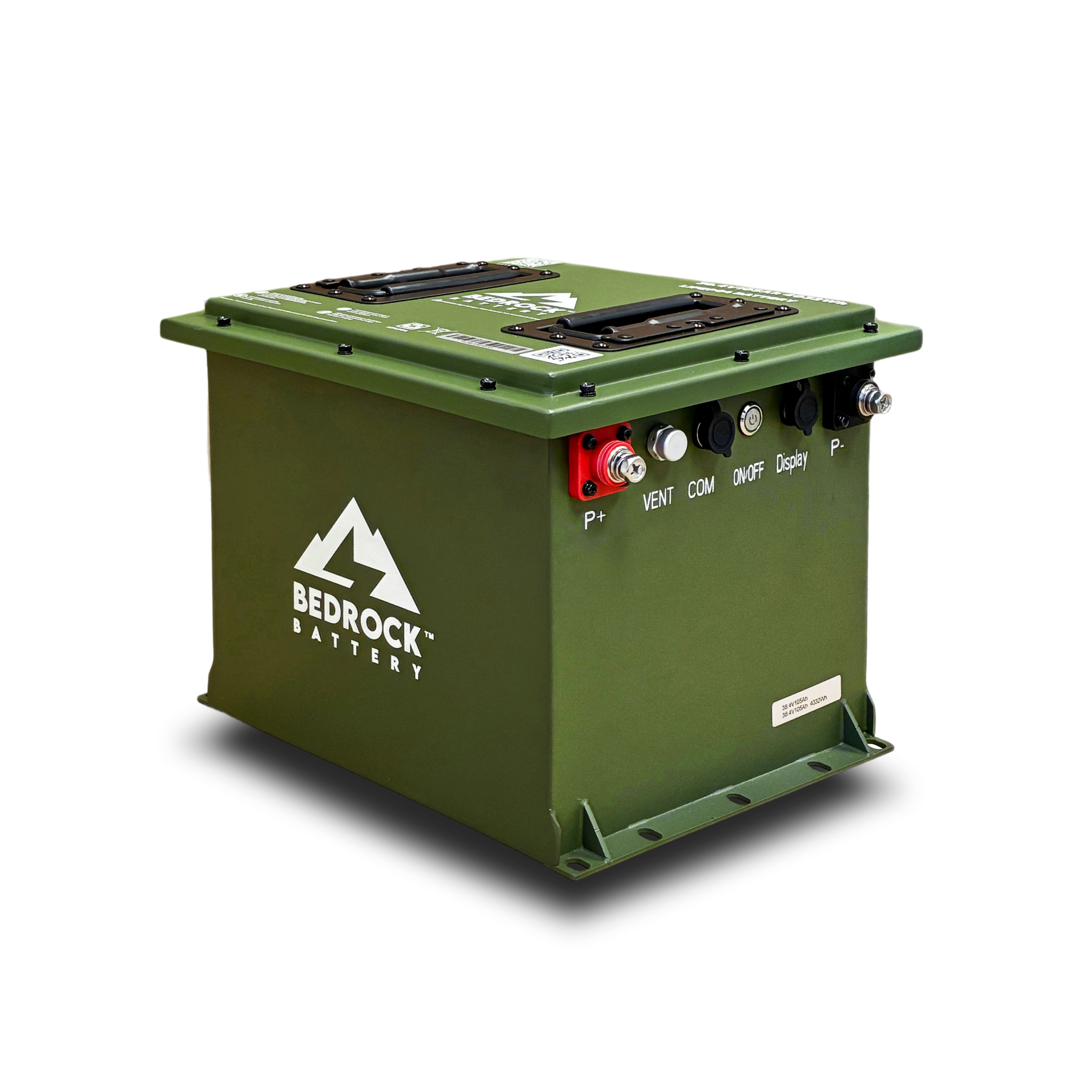

The Bedrock Battery 36V 105Ah Lithium Conversion Kit – Yamaha G1-G16 replaces the lead-acid battery pack in a Yamaha G1-G16 (36V) with one 36V 105Ah Bedrock LiFePO4 lithium battery. The kit includes the charger, charge port, charge meter and install hardware for that cart.

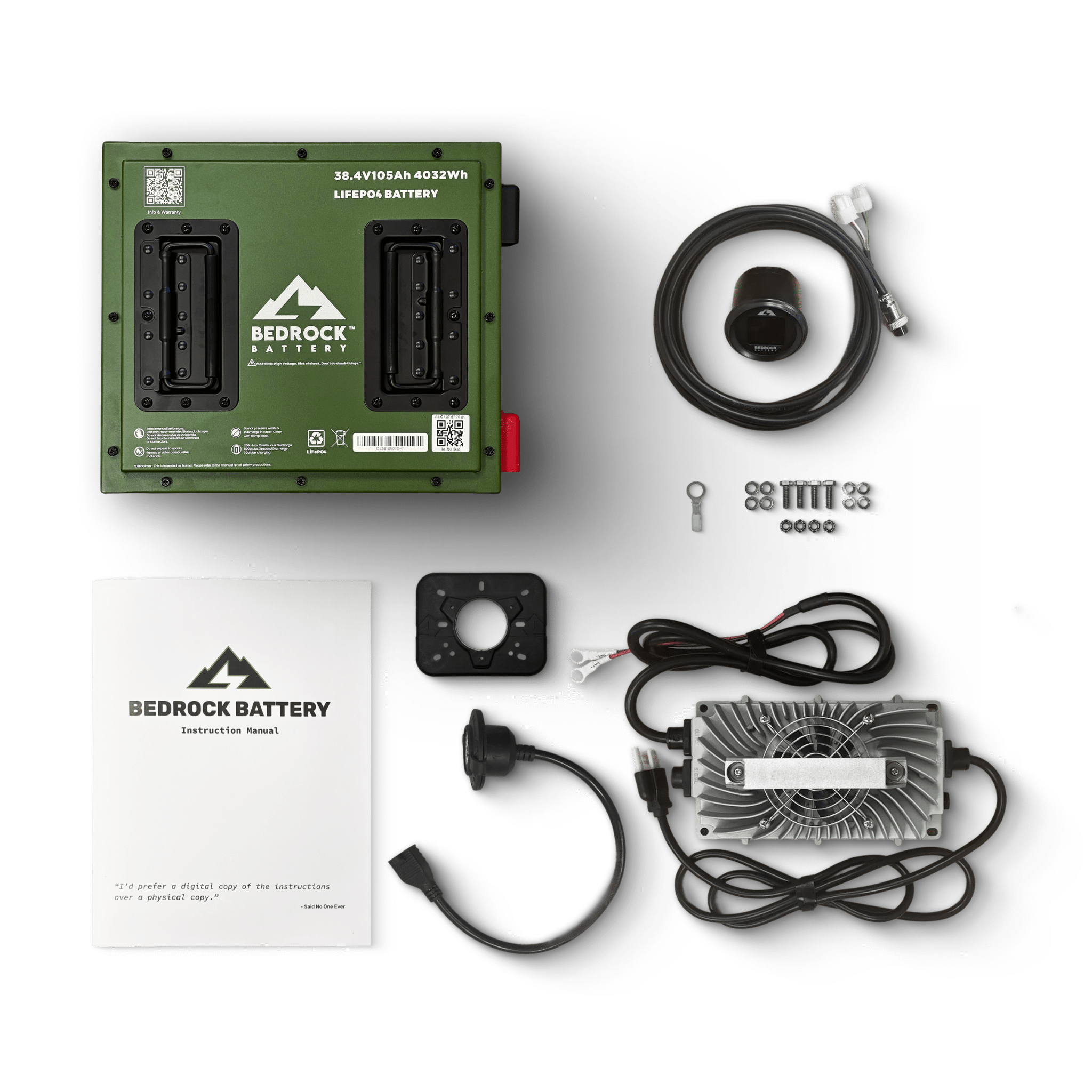

What’s in the kit
- Bedrock Battery 36V 105Ah LiFePO4 lithium battery
- Waterproof 15A lithium charger, with self-tapping screws for mounting
- AC charger port plug with a cart-specific or universal adaptor
- Round state-of-charge (SOC) meter with a 115 in. connector cable
- Cart-specific bracket where applicable, otherwise the standard bracket
- Cart-specific ring terminals
- Cart-specific install bolts
Not included: 12V converter. Bedrock lists a 12V converter as required for most carts. Add the Bedrock 12V converter (BB-CVT-0936) if your cart doesn’t already have one. Heavy-duty 2-gauge cables, a fuse block for multiple 12V accessories and a heavy-duty solenoid are also sold separately.
Fitment
Yamaha G1-G16 (36V). Not sure which kit fits your cart? Check our Fitment Guide or send us your cart’s make, model, year and serial number before you order.
Specifications
| Nominal voltage | 38.4V (36V system) |
|---|---|
| Capacity | 105Ah / 4.032 kWh |
| Cells | 12-cell LiFePO4 |
| BMS | Smart BMS, 200A continuous / 500A max (3 sec) |
| Battery weight | 80.5 lbs |
| Battery dimensions | 13.3 in W x 10.1 in H x 15.8 in L |
| Estimated range (Bedrock) | 2-seat: 20-35 miles; 4-seat: 15-25 miles |
| Chemistry | LiFePO4 (lithium iron phosphate), EVE Grade-A cells |
| Cycle life | Up to 6,000 cycles (Bedrock rating) |
| Water/dust rating | IP67 |
| Monitoring | Bluetooth app with anti-theft locking |
| Case | Steel case, MIL-STD-810H tested |
| Operating temperature | Charge 32-131°F; discharge -4-140°F; storage 50-113°F |
| Certifications | UN38.3, UL1973 & UL2580, REACH & RoHS |
Specs and range estimates are from Bedrock Battery. Bedrock says actual range varies with terrain, load, speed and cart setup.
Warranty and shipping
- 10-year transferable Bedrock warranty
- Free shipping on all Bedrock conversion kits
