Description
The Bedrock Battery 48V 105Ah Compact Lithium Conversion Kit – Yamaha Drive ’11+ / Drive2 replaces the lead-acid battery pack in a Yamaha Drive (G29) 2011+ and Drive2 with one 48V 105Ah Compact Bedrock LiFePO4 lithium battery. The kit includes the charger, charge port, charge meter and install hardware for that cart.

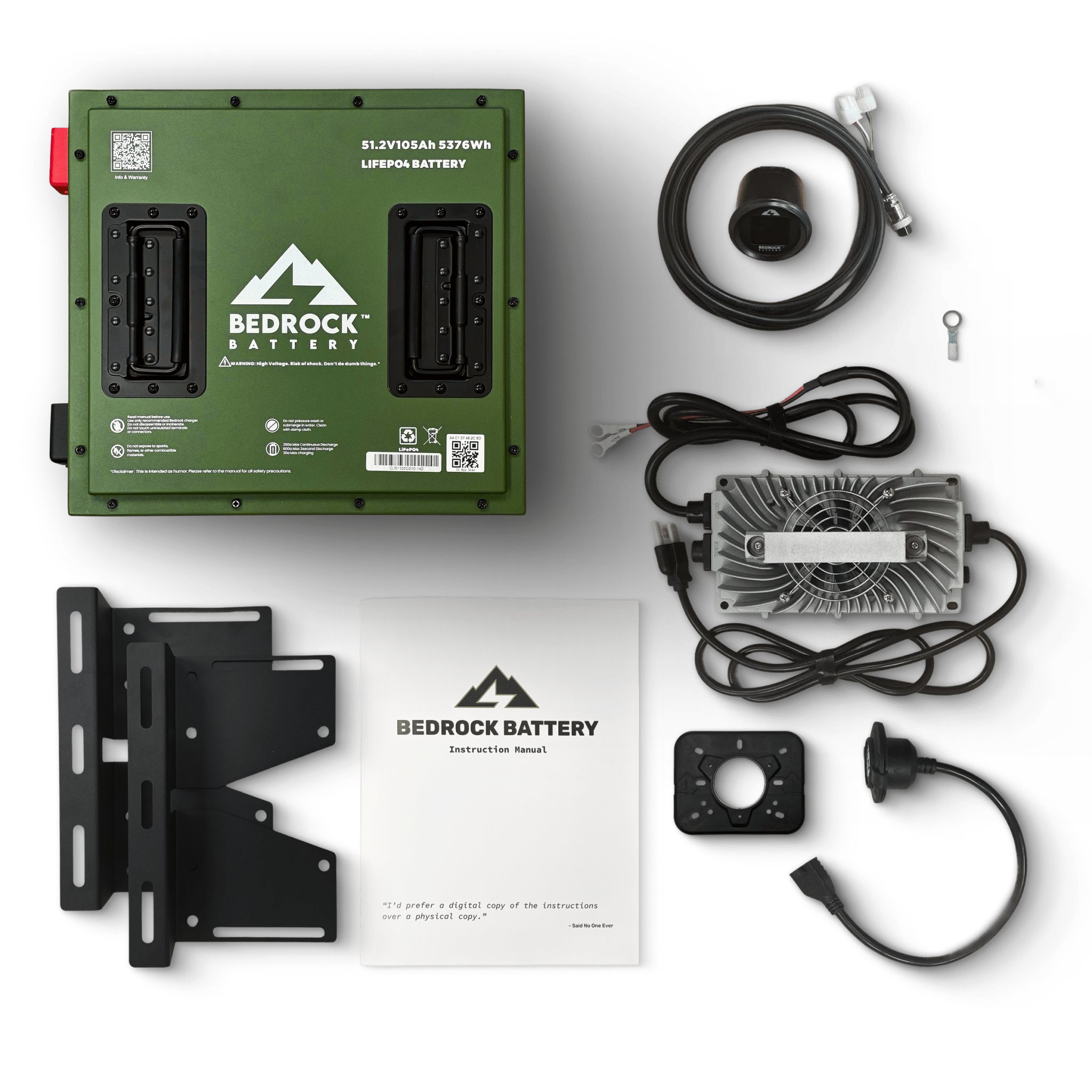

What’s in the kit

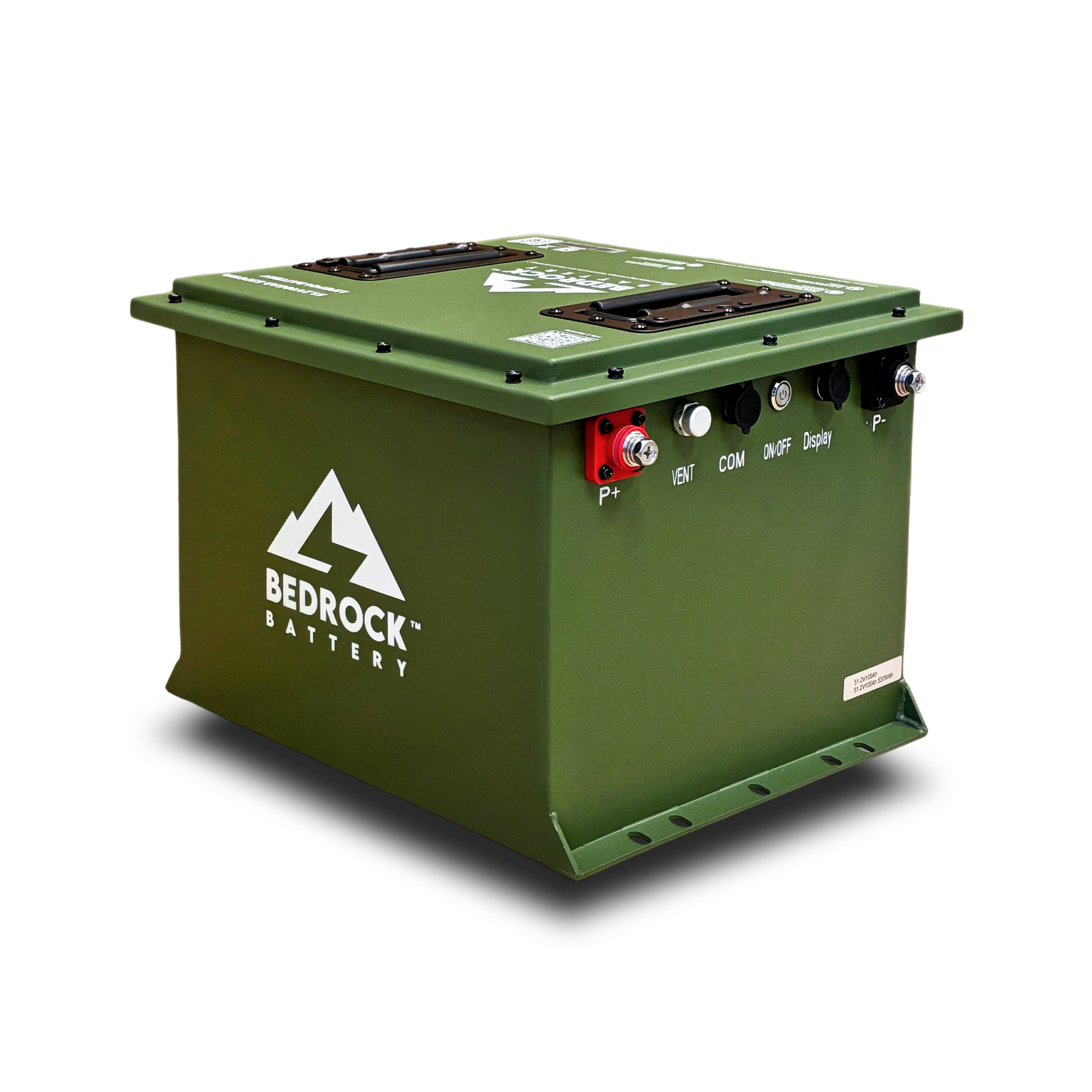

- Bedrock Battery 48V 105Ah Compact LiFePO4 lithium battery
- Waterproof 15A lithium charger, with self-tapping screws for mounting
- AC charger port plug with a cart-specific or universal adaptor
- Round state-of-charge (SOC) meter with a 115 in. connector cable
- Cart-specific bracket where applicable, otherwise the standard bracket
- Cart-specific ring terminals
- Cart-specific install bolts
Not included: 12V converter. Bedrock lists a 12V converter as required for most carts. Add the Bedrock 12V converter (BB-CVT-0948) if your cart doesn’t already have one. Heavy-duty 2-gauge cables, a fuse block for multiple 12V accessories and a heavy-duty solenoid are also sold separately.
Fitment
Yamaha Drive (G29) 2011+ and Drive2. Not sure which kit fits your cart? Check our Fitment Guide or send us your cart’s make, model, year and serial number before you order.
Specifications
| Nominal voltage | 51.2V (48V system) |
|---|---|
| Capacity | 105Ah / 5.38 kWh |
| Cells | 16-cell LiFePO4 |
| BMS | Smart BMS, 250A continuous / 600A max (3 sec) |
| Battery weight | 95.9 lbs |
| Battery dimensions | 12.24 in W x 11.3 in H x 14.76 in L |
| Estimated range (Bedrock) | 2-seat: 30-45 miles; 4-seat: 20-35 miles; 6-seat: 20-30 miles |
| Chemistry | LiFePO4 (lithium iron phosphate), EVE Grade-A cells |
| Cycle life | Up to 6,000 cycles (Bedrock rating) |
| Water/dust rating | IP67 |
| Monitoring | Bluetooth app with anti-theft locking |
| Case | Steel case, MIL-STD-810H tested |
| Operating temperature | Charge 32-131°F; discharge -4-140°F; storage 50-113°F |
| Certifications | UN38.3, UL1973 & UL2580, REACH & RoHS |
Specs and range estimates are from Bedrock Battery. Bedrock says actual range varies with terrain, load, speed and cart setup.
Warranty and shipping
- 10-year transferable Bedrock warranty
- Free shipping on all Bedrock conversion kits
- A heated battery version is available on request; contact us for pricing and lead time
