Description
The Bedrock Battery 48V 150Ah Lithium Conversion Kit – Star EV replaces the lead-acid battery pack in a Star EV with one 48V 150Ah Bedrock LiFePO4 lithium battery. The kit includes the charger, charge port, charge meter and install hardware for that cart.

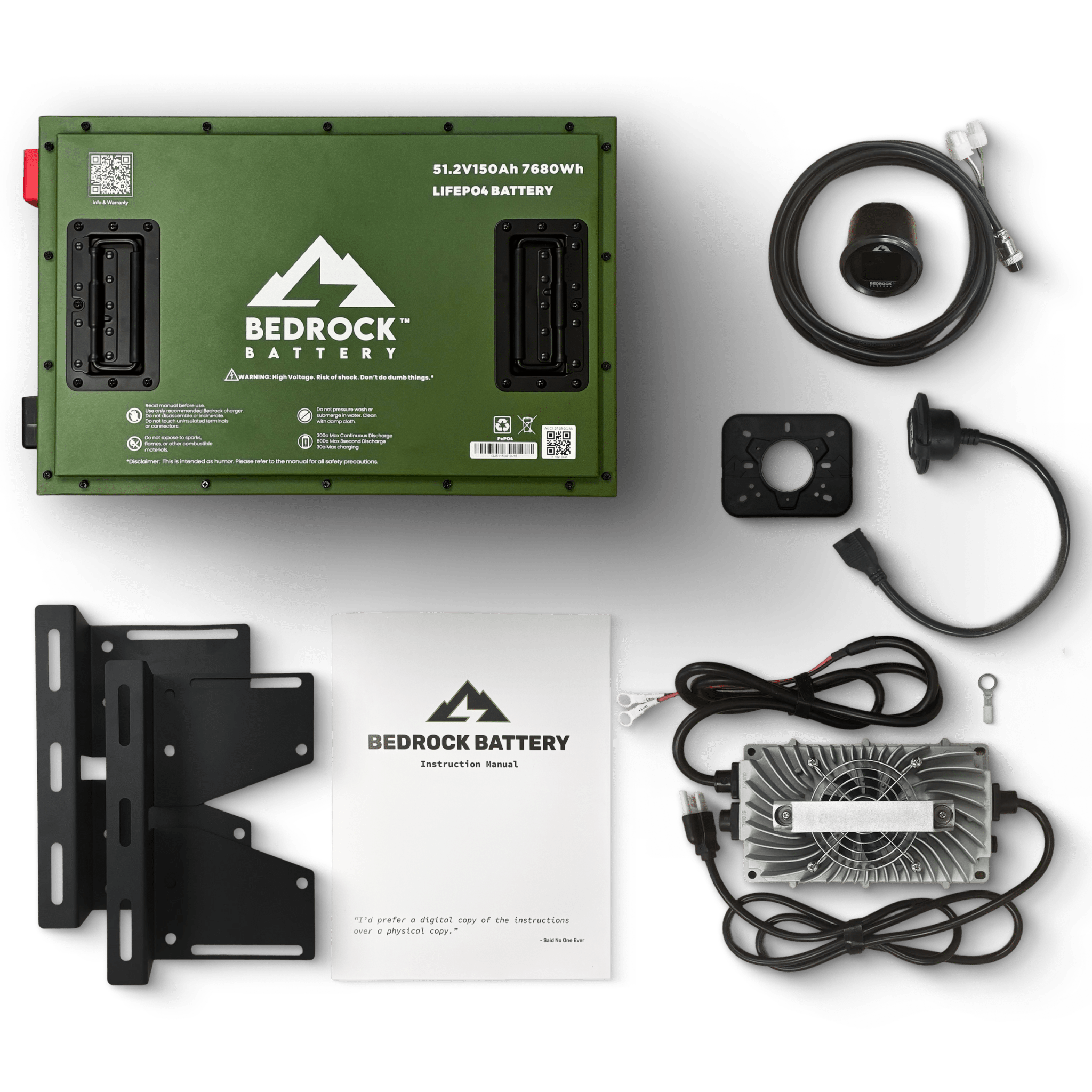

What’s in the kit

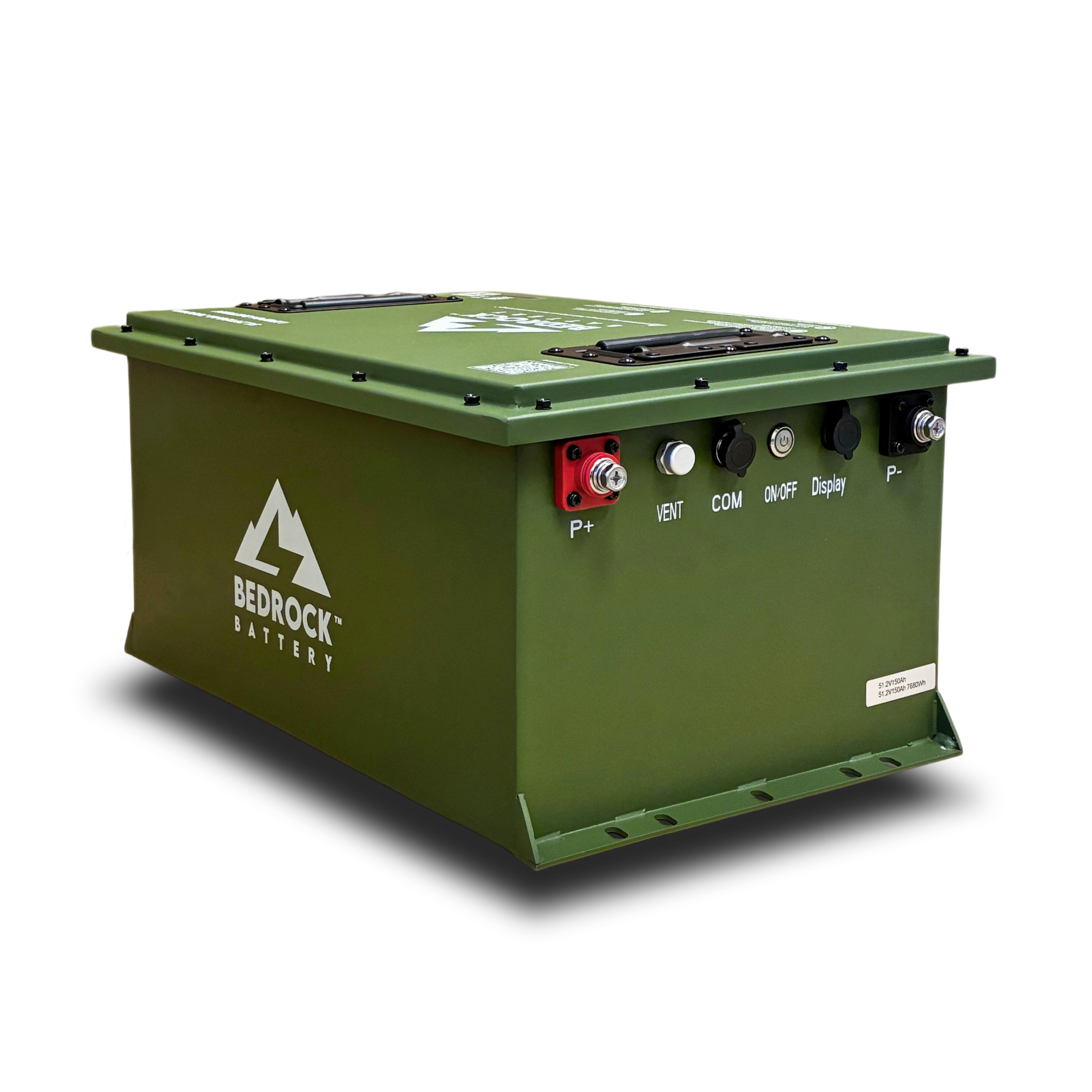

- Bedrock Battery 48V 150Ah LiFePO4 lithium battery
- Waterproof 15A lithium charger, with self-tapping screws for mounting
- AC charger port plug with a cart-specific or universal adaptor
- Round state-of-charge (SOC) meter with a 115 in. connector cable
- Cart-specific bracket where applicable, otherwise the standard bracket
- Cart-specific ring terminals
- Cart-specific install bolts
Not included: 12V converter. Bedrock lists a 12V converter as required for most carts. Add the Bedrock 12V converter (BB-CVT-0948) if your cart doesn’t already have one. Heavy-duty 2-gauge cables, a fuse block for multiple 12V accessories and a heavy-duty solenoid are also sold separately.
Fitment
Star EV. Not sure which kit fits your cart? Check our Fitment Guide or send us your cart’s make, model, year and serial number before you order.
Specifications
| Nominal voltage | 51.2V (48V system) |
|---|---|
| Capacity | 150Ah / 7.68 kWh |
| Cells | 16-cell LiFePO4 |
| BMS | Smart BMS, 300A continuous / 600A max (3 sec) |
| Battery weight | 133.4 lbs |
| Battery dimensions | 13.9 in W x 9.84 in H x 21.97 in L |
| Estimated range (Bedrock) | 2-seat: 50-70 miles; 4-seat: 40-60 miles; 6-seat: 30-50 miles |
| Chemistry | LiFePO4 (lithium iron phosphate), EVE Grade-A cells |
| Cycle life | Up to 6,000 cycles (Bedrock rating) |
| Water/dust rating | IP67 |
| Monitoring | Bluetooth app with anti-theft locking |
| Case | Steel case, MIL-STD-810H tested |
| Operating temperature | Charge 32-131°F; discharge -4-140°F; storage 50-113°F |
| Certifications | UN38.3, UL1973 & UL2580, REACH & RoHS |
Specs and range estimates are from Bedrock Battery. Bedrock says actual range varies with terrain, load, speed and cart setup.
Warranty and shipping
- 10-year transferable Bedrock warranty
- Free curbside truck freight to the lower 48 on all Bedrock conversion kits
- A heated battery version is available on request; contact us for pricing and lead time
