Description

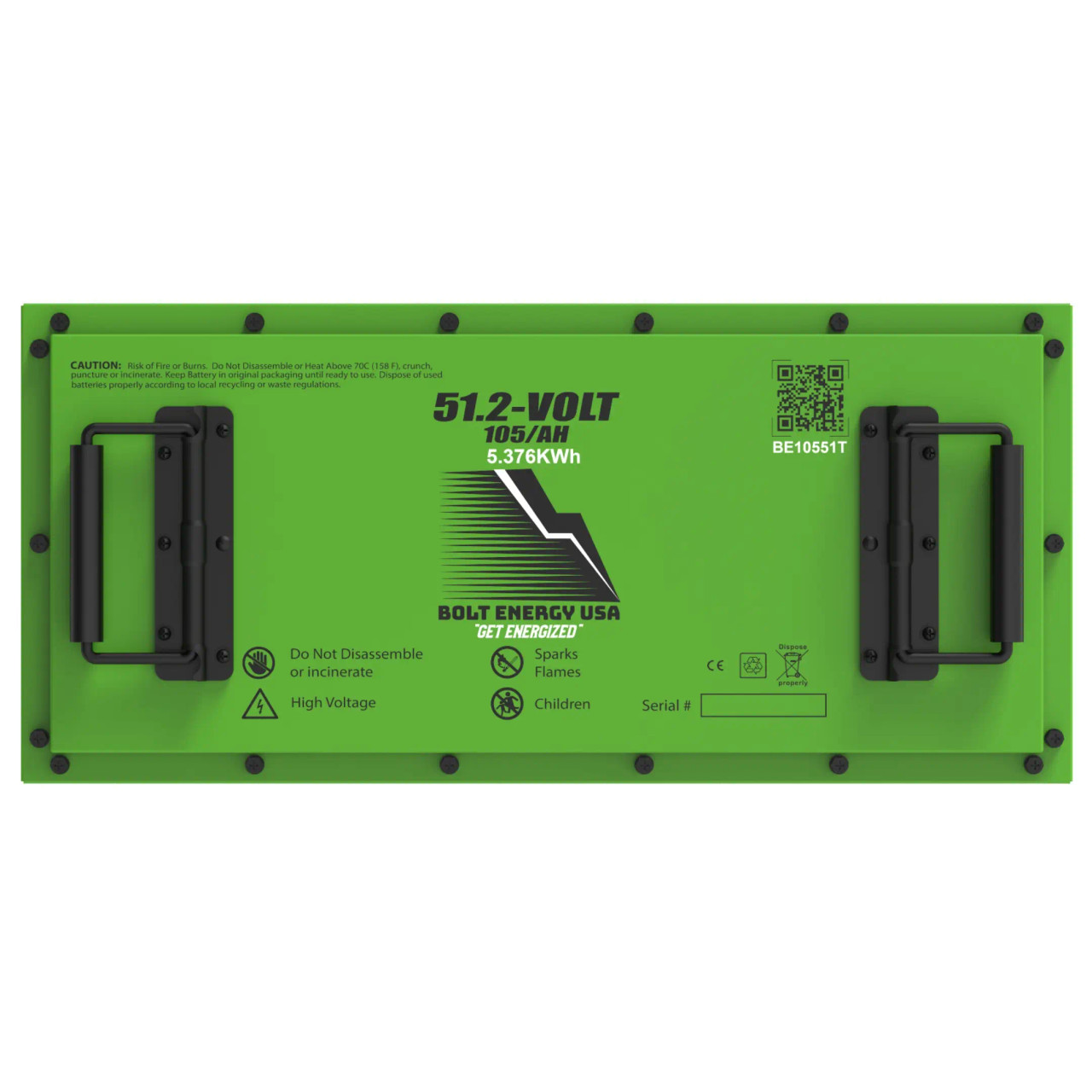

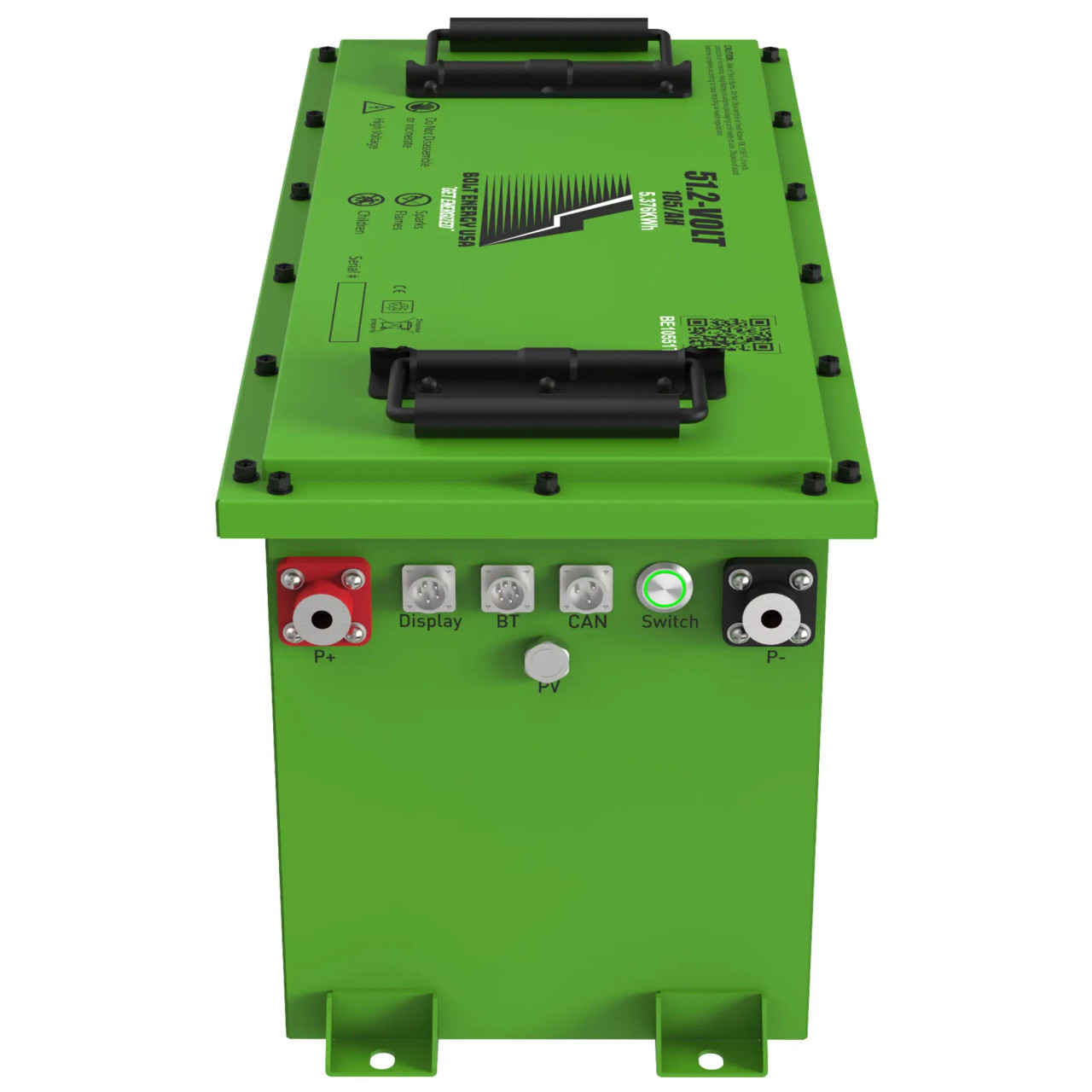

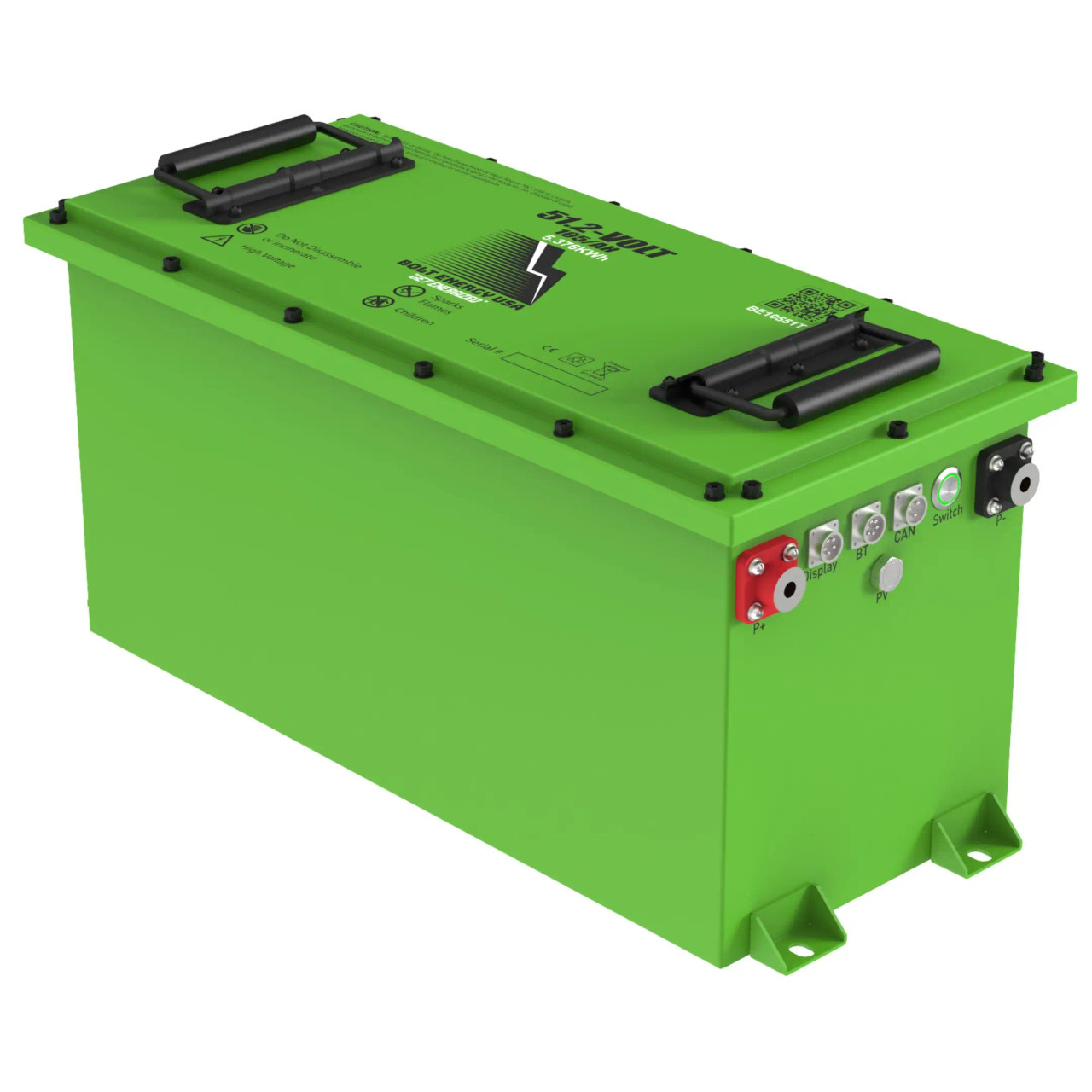

A direct swap for the factory lithium pack in the Evolution D5. The BOLT Energy 48V 105Ah LiFePO4 pack (Slim) installs in the original location and talks to the cart through the included CAN adapter.
Key numbers: 5.376 kWh of stored energy, a battery weight of 105 lbs, 250A continuous discharge.
Estimated range: about 30-45 miles per charge. Your range depends on seats and passengers, lift kit and tire size, hills, speed and accessories.

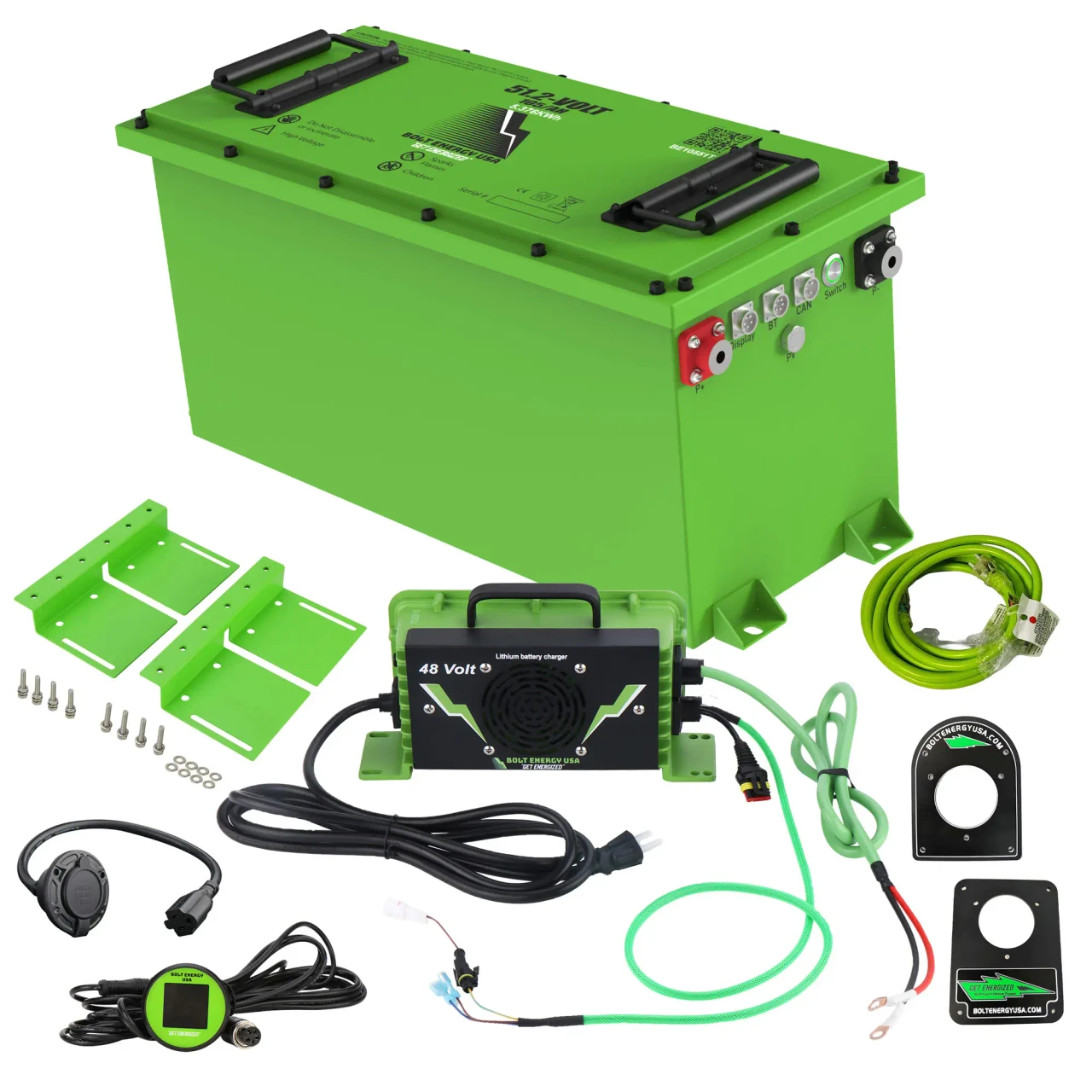

What’s included
- 48V 105Ah LiFePO4 battery pack (Slim)

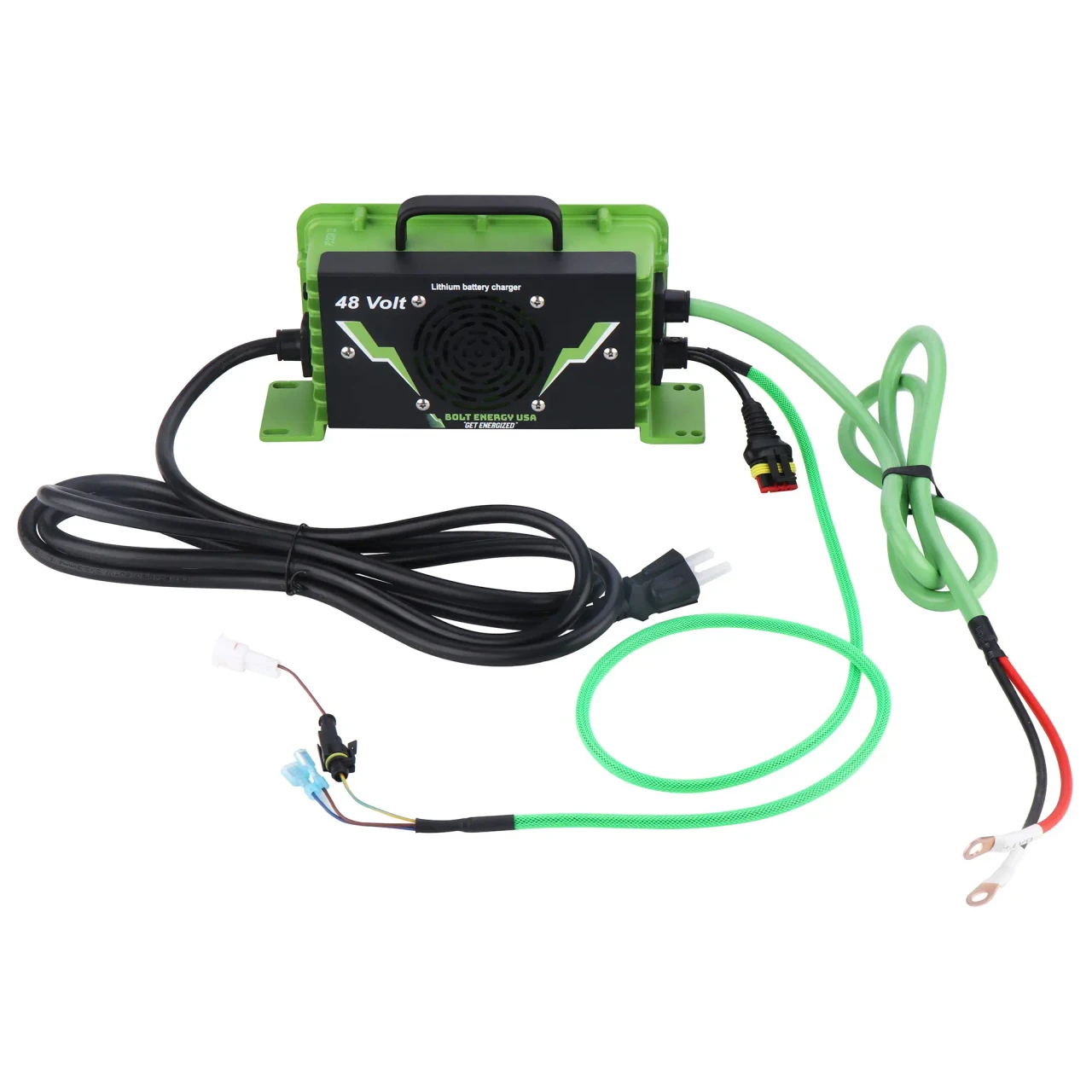

- 48V CAN-communicating lithium charger, 18 A
- LCD state-of-charge meter

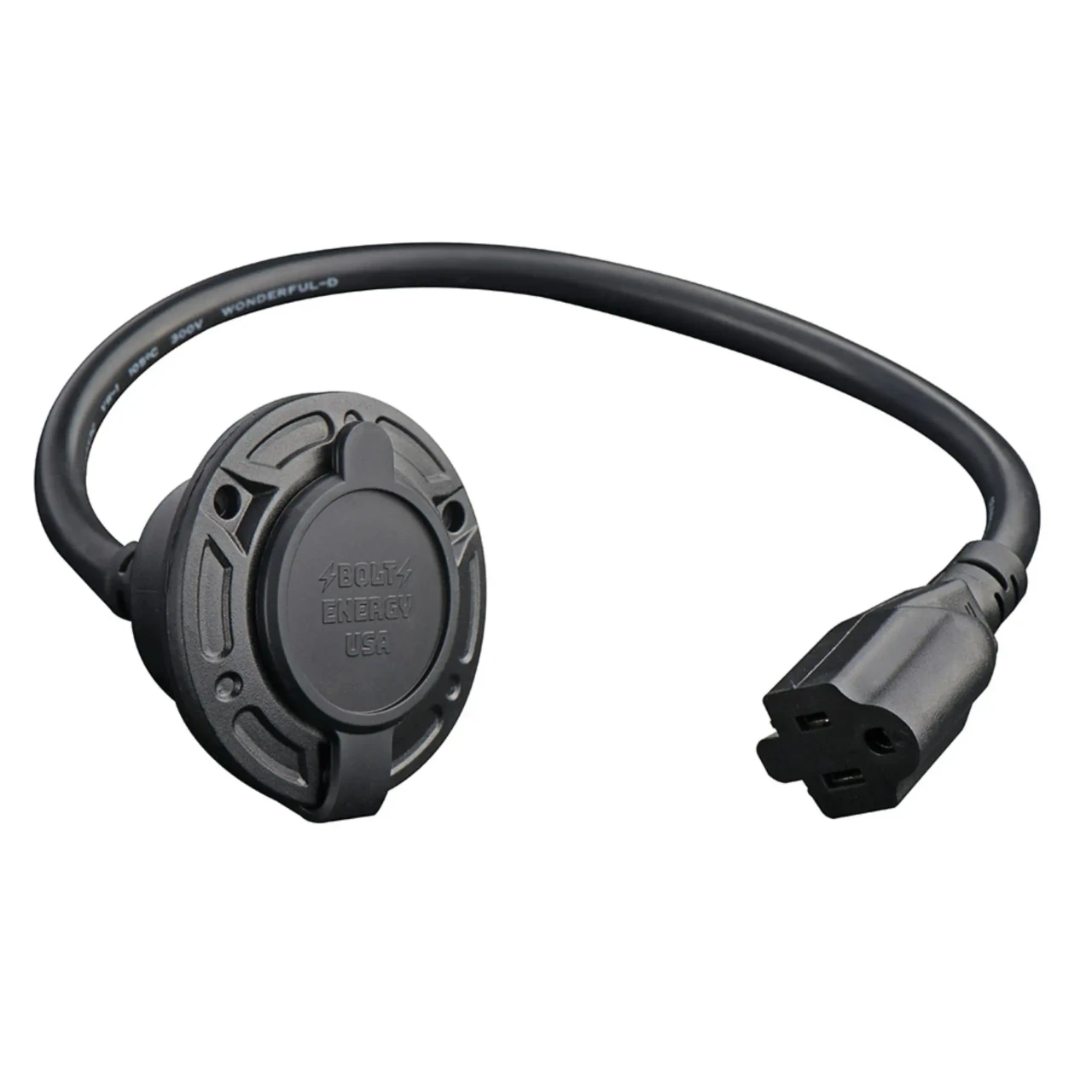

- Charge receptacle for the Evolution D5
- Remote on/off (wake-up) button
- Mounting brackets, nuts and bolts
- Printed installation instructions
Specifications
| Brand | BOLT Energy |
|---|---|
| Fits | Evolution D5, 48V |
| Nominal voltage | 51.2V |
| Capacity | 105Ah |
| Energy | 5.376 kWh |
| Continuous discharge | 250A |
| Peak discharge | 520A ± 15.6A (30 s) |
| Chemistry | Prismatic LiFePO4 |
| Cell configuration | 1P16S |
| Terminals | M8 x 1.5 x 25mm |
| Battery weight | 105 lbs (46.63Kg) |
| Battery size (L x W x H) | 20″ x 8.43″ x 10.65″ |
| Ingress rating | IP66 |
| Charging temperature | 34°F to 140°F (0-60°C) |
| Bluetooth | Yes (battery monitoring) |
| Case | Powder Coated Steel |
Warranty: 12-Year transferable Warranty from BOLT Energy. Ask us for the full warranty terms before you buy.
Check your fitment: confirm your cart’s make, model, year and voltage before ordering. See the Fitment Guide or send us your cart details and we’ll confirm the right kit.
About BOLT Energy
BOLT Energy USA is a lithium golf cart battery brand based in Largo, Florida, and part of the Nivel family of brands, a large golf cart parts distributor. BOLT publishes a cart compatibility tool, owner’s manuals, data sheets and install videos for its kits.
- 12-year transferable warranty, one of the longest in golf cart lithium.
- Kits matched to specific carts, including some commercial and utility models.
- BOLT’s own install videos for the Club Car DS and Precedent, EZGO TXT and Yamaha.
See everything we carry from BOLT Energy.
Good to know
- Charge only with the lithium charger supplied with the kit or one the maker approves; a lead-acid charger can damage a lithium battery.
- Running lights, a radio or USB ports? Most conversions need a 12V converter; check the parts list above and see accessories.
- LiFePO4 should not be charged below freezing unless the battery is heated or has low-temperature protection.
Shipping or local delivery: this battery can be shipped to you or delivered locally. See Shipping & Local Delivery for details.
