Description

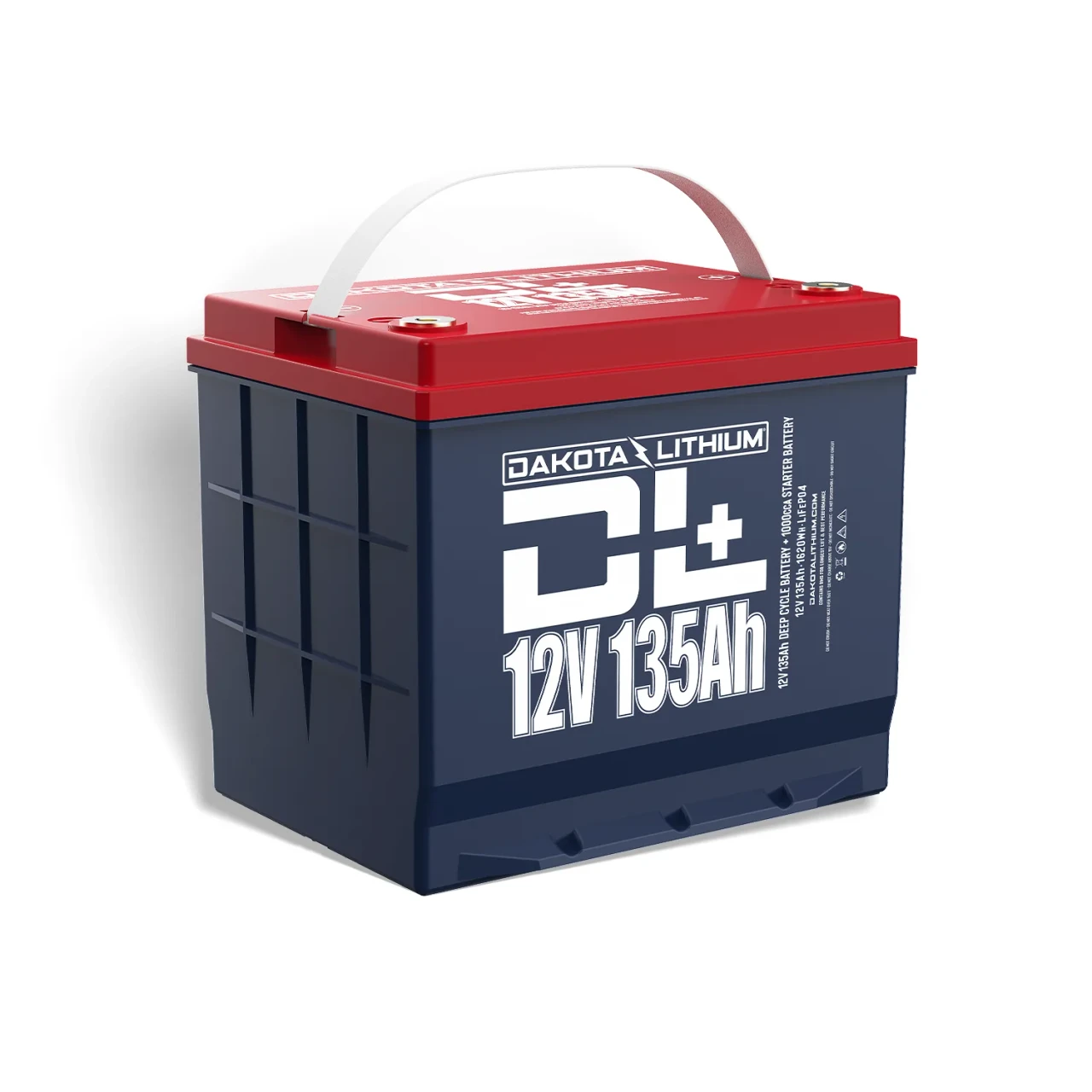

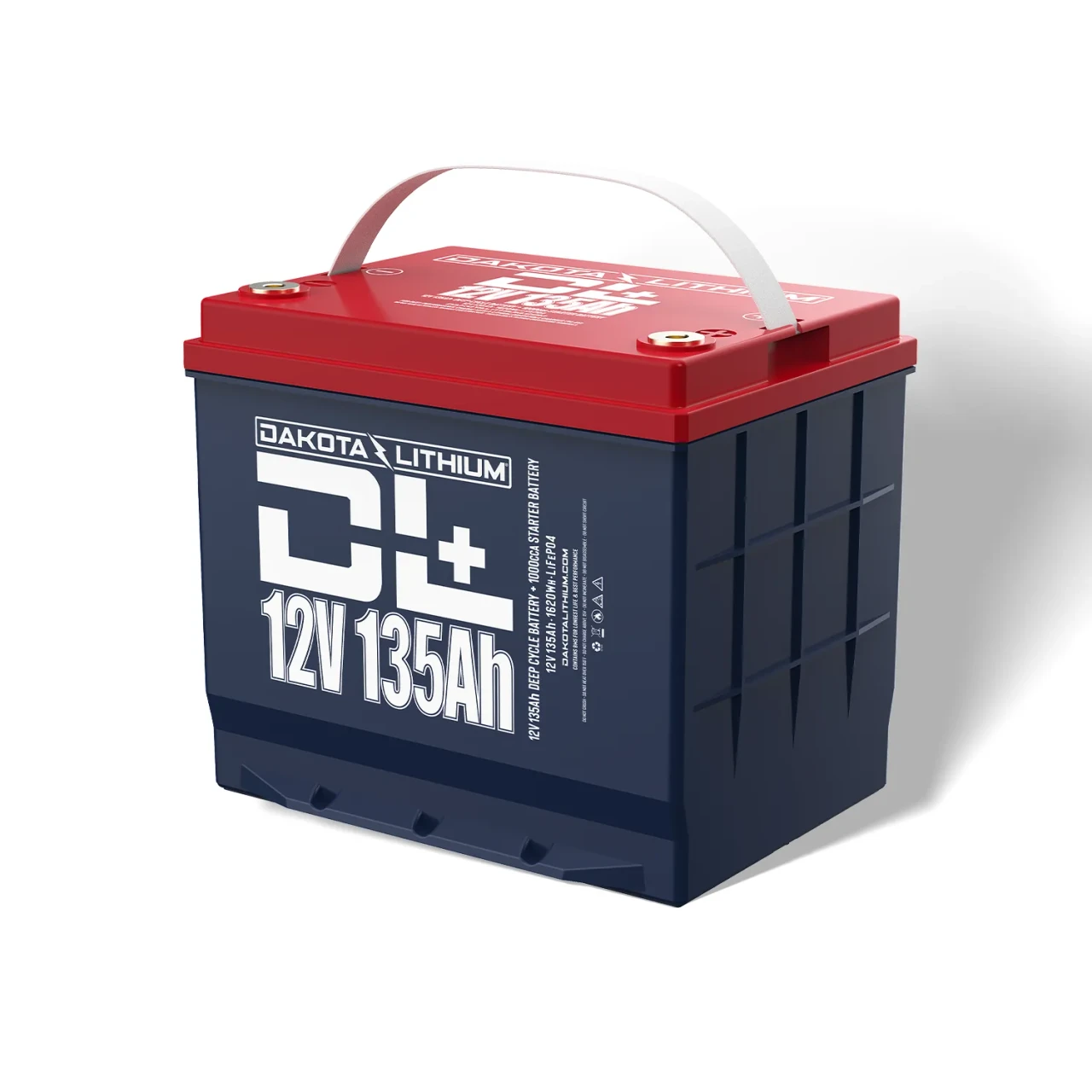

Dakota Lithium 12V 135Ah LiFePO4 battery for trolling motor & rv use, 1,620Wh of stored energy, 27.2 lbs.
Highlights
- Max Continuous Discharge: 135A (1,000A 2-second pulse)
- Cycle Life: Up to 5,000 cycles to 80% capacity
- Water Rating: IP65
- Cold Weather: Internal heating warms cells for sub-freezing charging
Uses and fitment
- Trolling Motor
- RV
- Group Size: BCI Group 24 case (24F terminal layout; Group 34, GC2 compatible)
Specifications
| Brand | Dakota Lithium |
|---|---|
| Voltage | 12.8V nominal LiFePO4 |
| Capacity | 135Ah / 1,620Wh |
| Engine Starting | 1,000 CCA equivalent |
| Max Continuous Discharge | 135A (1,000A 2-second pulse) |
| Max Charge | 70A recommended, 135A max; 150A max alternator |
| Cycle Life | Up to 5,000 cycles to 80% capacity |
| Cold Weather | Internal heating warms cells for sub-freezing charging |
| Group Size | BCI Group 24 case (24F terminal layout; Group 34, GC2 compatible) |
| Weight | 27.2 lbs |
| Dimensions | 9.5″ x 6.9″ x 8.22″ |

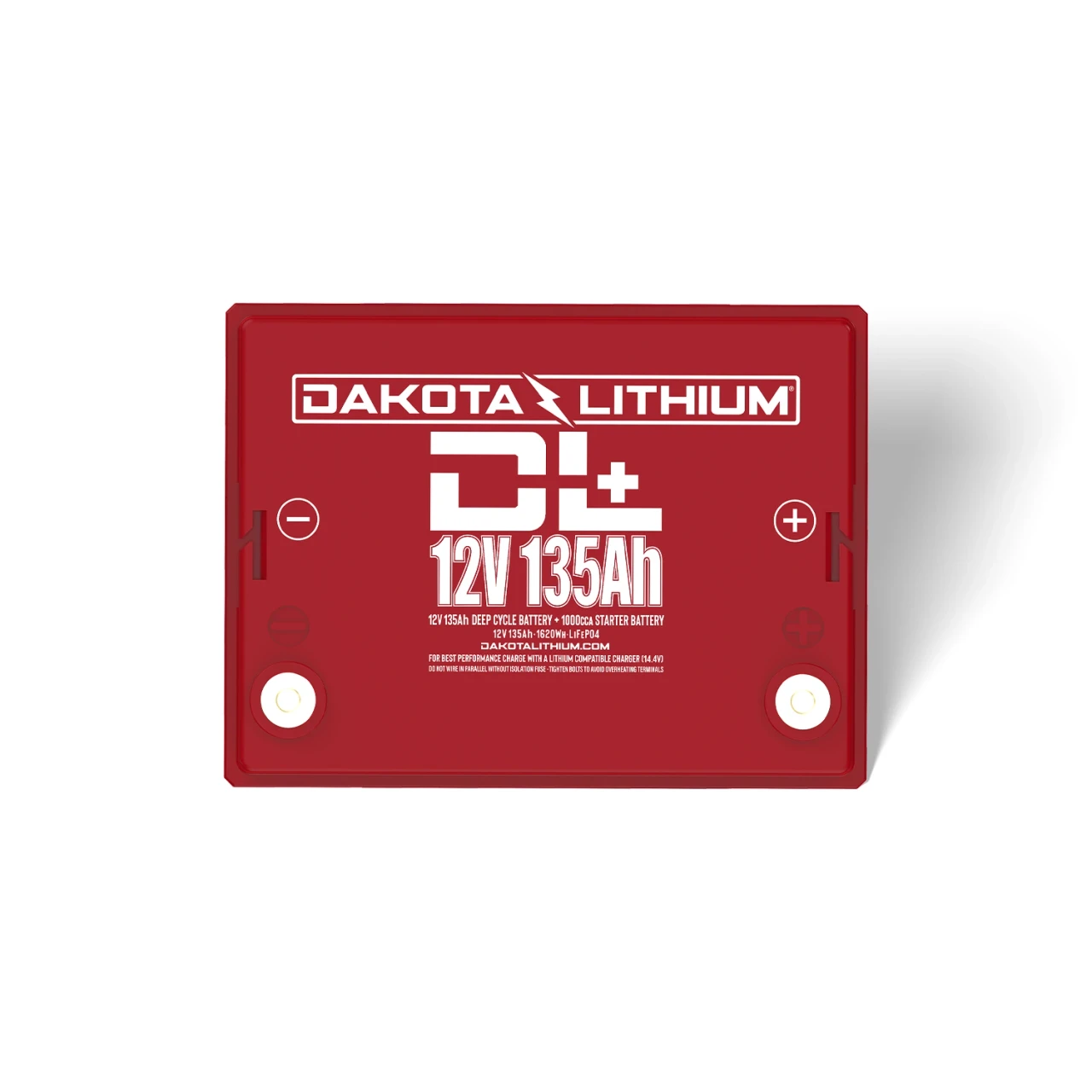

| Terminals | M8 bolts + included automotive and marine post adapters |
| Water Rating | IP65 |
| Operating Temp | -4F to 158F |
Warranty: 11-Year Dakota Lithium Warranty from Dakota Lithium. Ask us for the full warranty terms before you buy.
Before you order: compare the case size, terminal layout and dimensions with the battery you have now, or send us your current battery’s part number and we’ll confirm the fit.
About Dakota Lithium
Dakota Lithium makes LiFePO4 batteries for a wide range of uses: golf carts, trolling motors and boats, RVs, solar, cars and powersports. The company sells direct and through dealers, and is known for long warranties on its deep-cycle batteries.
- Long warranties on deep-cycle batteries (11 years on most models).
- One brand for the cart, the boat, the RV and the ATV.
- Waterproof lithium chargers matched to Dakota batteries.
See everything we carry from Dakota Lithium.
Good to know
- Match your trolling motor voltage: one battery of that voltage, or identical 12V batteries in series (2 for 24V, 3 for 36V).
- Charge with a lithium charger for the system voltage, or a multi-bank lithium charger for series sets.
More in our trolling motor battery guide.
Shipping or local delivery: this battery can be shipped to you or delivered locally. See Shipping & Local Delivery for details.
