Description
Switch a 48-volt EZGO RXV from a lead-acid set to one ECO Battery 48V 105Ah LiFePO4 battery from the Thru-Hole GEN3 line. It is sold as a complete kit for this cart, lithium charger included; the parts list below shows exactly what is in the box.
Key numbers: 5.3 kWh of stored energy, a battery weight of 98 lbs, 250A continuous discharge.
Estimated range: about 21-35 miles per charge on flat ground (our estimate from the battery’s stored energy). Your range depends on seats and passengers, lift kit and tire size, hills, speed and accessories.

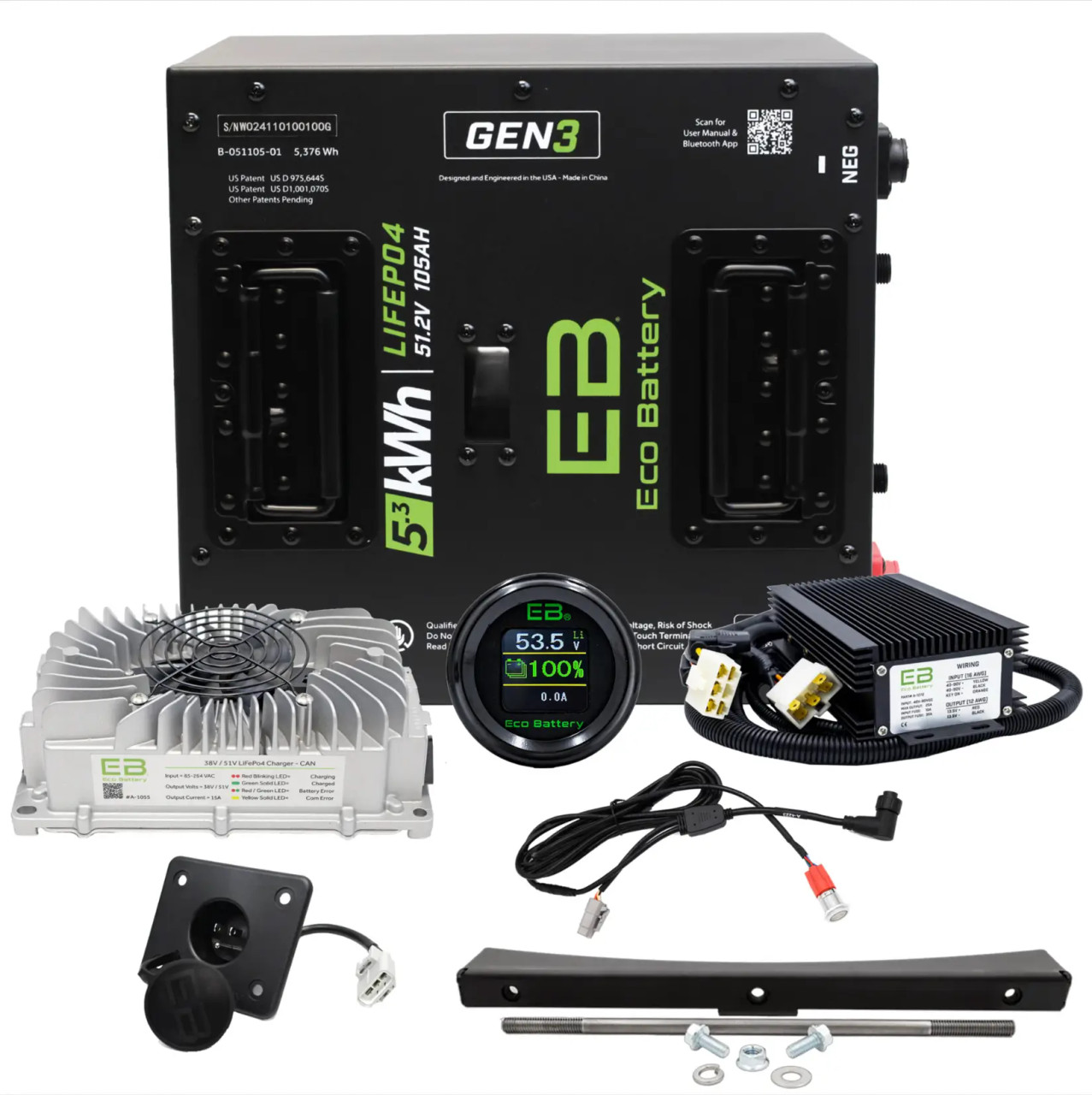

What’s included
- 51V 105Ah Thru-Hole LiFePO4 Battery GEN3 (part A-051105-01)
- 38V-51V 15A CAN Charger (part A-1055)
- DC-DC 12V Converter, 40V-90V Input (part A-1272)

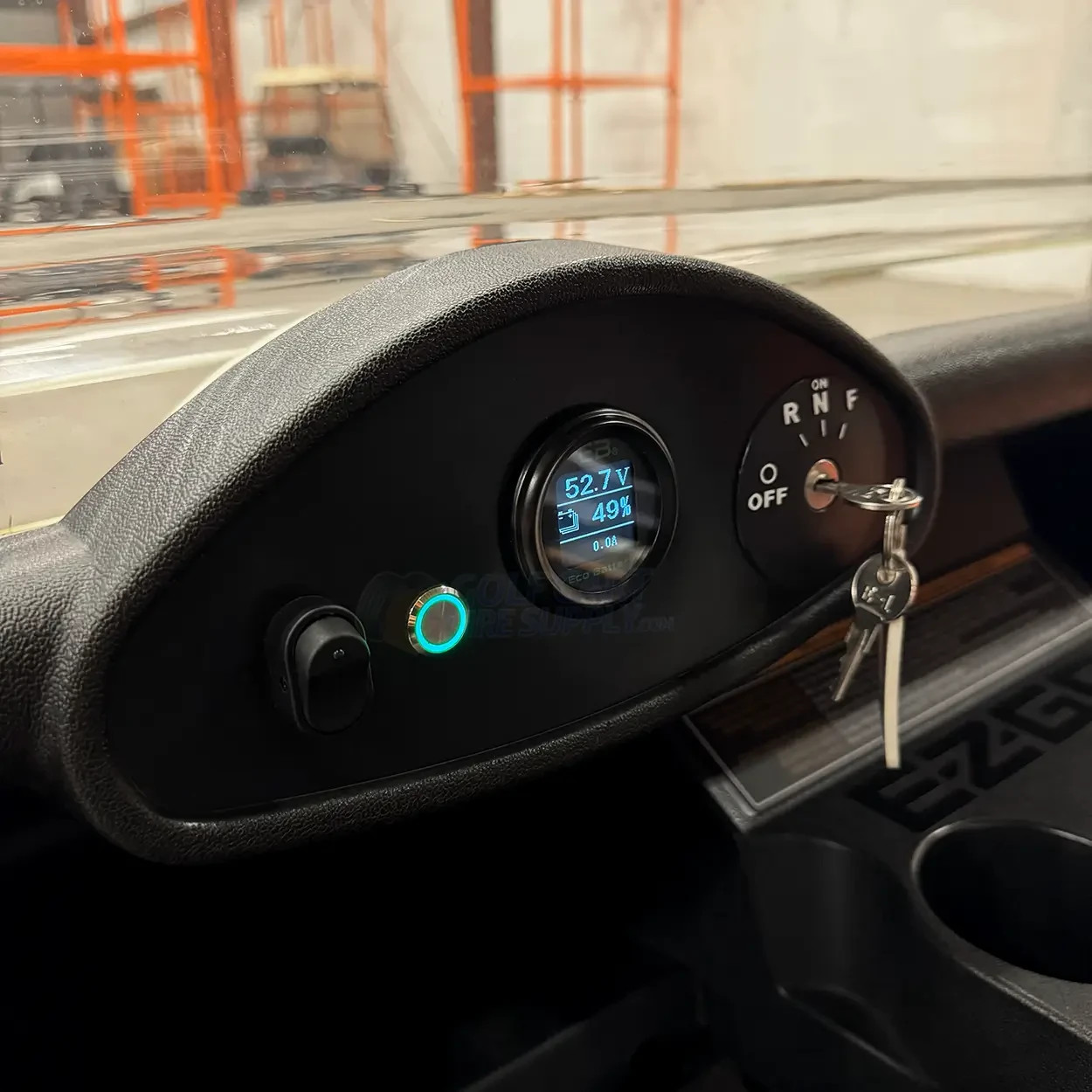

- CAN LCD SOC Meter, Auto Baud (part A-3109)

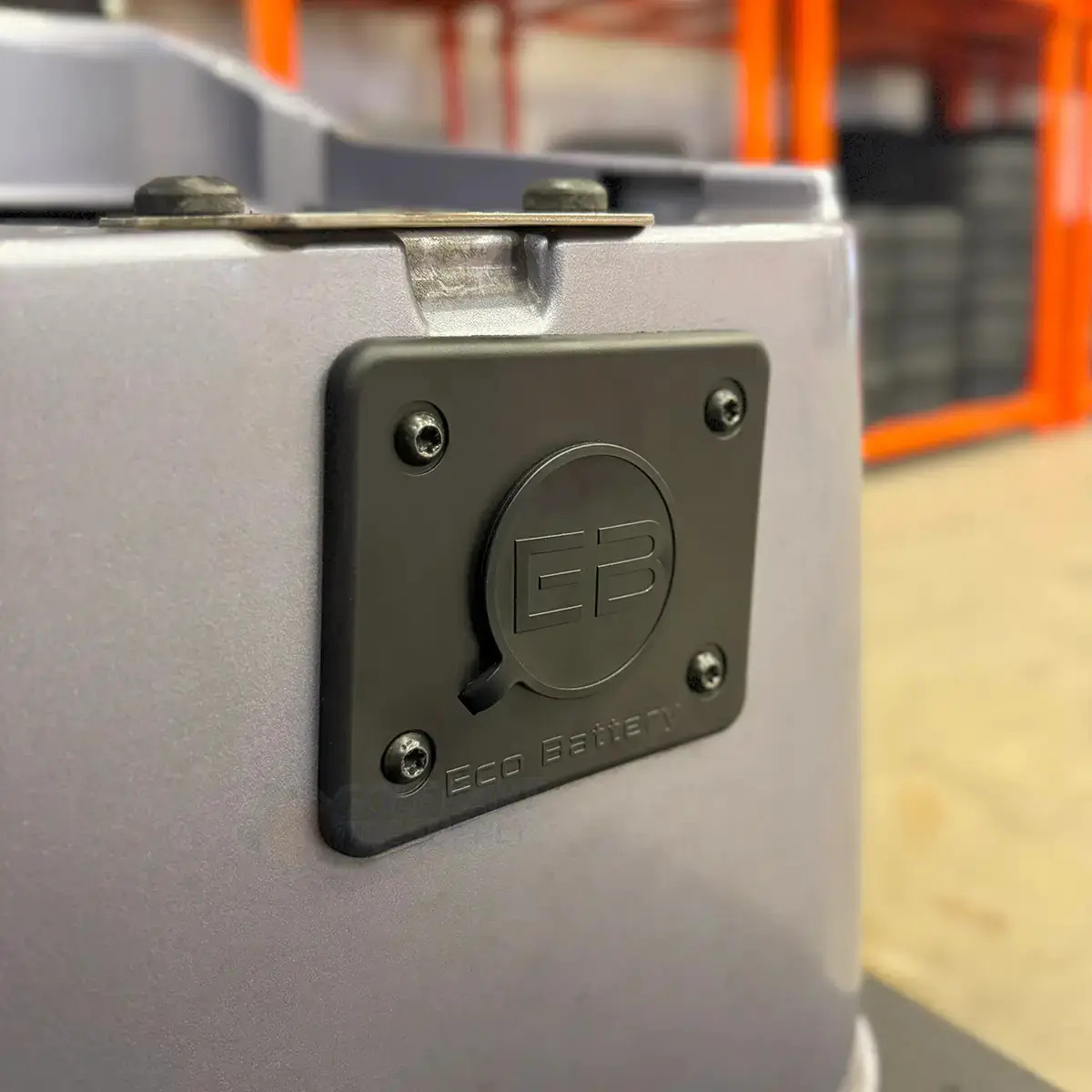

- Charge Port, EZGO RXV, 110V Plug – Quick Connect Plug (part A-4032)
- Thru-Hole Mounting Kit, EZGO RXV (part A-8101)
- Remote Button Battery Wake Up Kit (part A-4220)
- Extension Cord (part A-4401-240)
ECO Battery bundle contents, as listed under “This Bundle Contains” on the brand page. Source: ecobattery.com product page.
Specifications
| Brand | ECO Battery |
|---|---|
| Fits | EZGO RXV, 48V |
| Nominal voltage | 51.2V |
| Capacity | 105Ah |
| Energy | 5.3 kWh |
| Continuous discharge | 250A |
| Peak discharge | 550A (10 s) |
| Chemistry | Lithium Iron Phosphate |
| Cell configuration | 1P16S |
| Battery weight | 98 lbs (44.45Kg) |
| Battery size (L x W x H) | 13.14″ x 12.24″ x 10.15″ |
| Ingress rating | IP67 |
| Charging temperature | 32F+ |
| Discharge temperature | -4F to 140F |
| Case | Powder Coated Steel |
Warranty: Limited Lifetime Warranty from ECO Battery. Ask us for the full warranty terms before you buy.
Check your fitment: confirm your cart’s make, model, year and voltage before ordering. See the Fitment Guide or send us your cart details and we’ll confirm the right kit.
About ECO Battery
ECO Battery makes lithium batteries for golf carts and low-speed vehicles (LSVs) and positions them as an affordable replacement for a lead-acid pack. ECO also supplies factory lithium bundles to new-cart manufacturers, sells AC powertrain bundles, and publishes its own step-by-step installation videos for the most common carts.
- Several case shapes (Cube, Square, Skinny, Thru-Hole) for tight compartments.
- Cart-specific bundles for Club Car, EZGO, Yamaha, ICON and Evolution.
- ECO’s own install guides on YouTube for the DS, Precedent/Onward/Tempo, TXT and Drive.
See everything we carry from ECO Battery.
Good to know
- Charge only with the lithium charger supplied with the kit or one the maker approves; a lead-acid charger can damage a lithium battery.
- Running lights, a radio or USB ports? Most conversions need a 12V converter; check the parts list above and see accessories.
- LiFePO4 should not be charged below freezing unless the battery is heated or has low-temperature protection.
Shipping: this battery ships to you. See Shipping & Delivery for details.
