Description

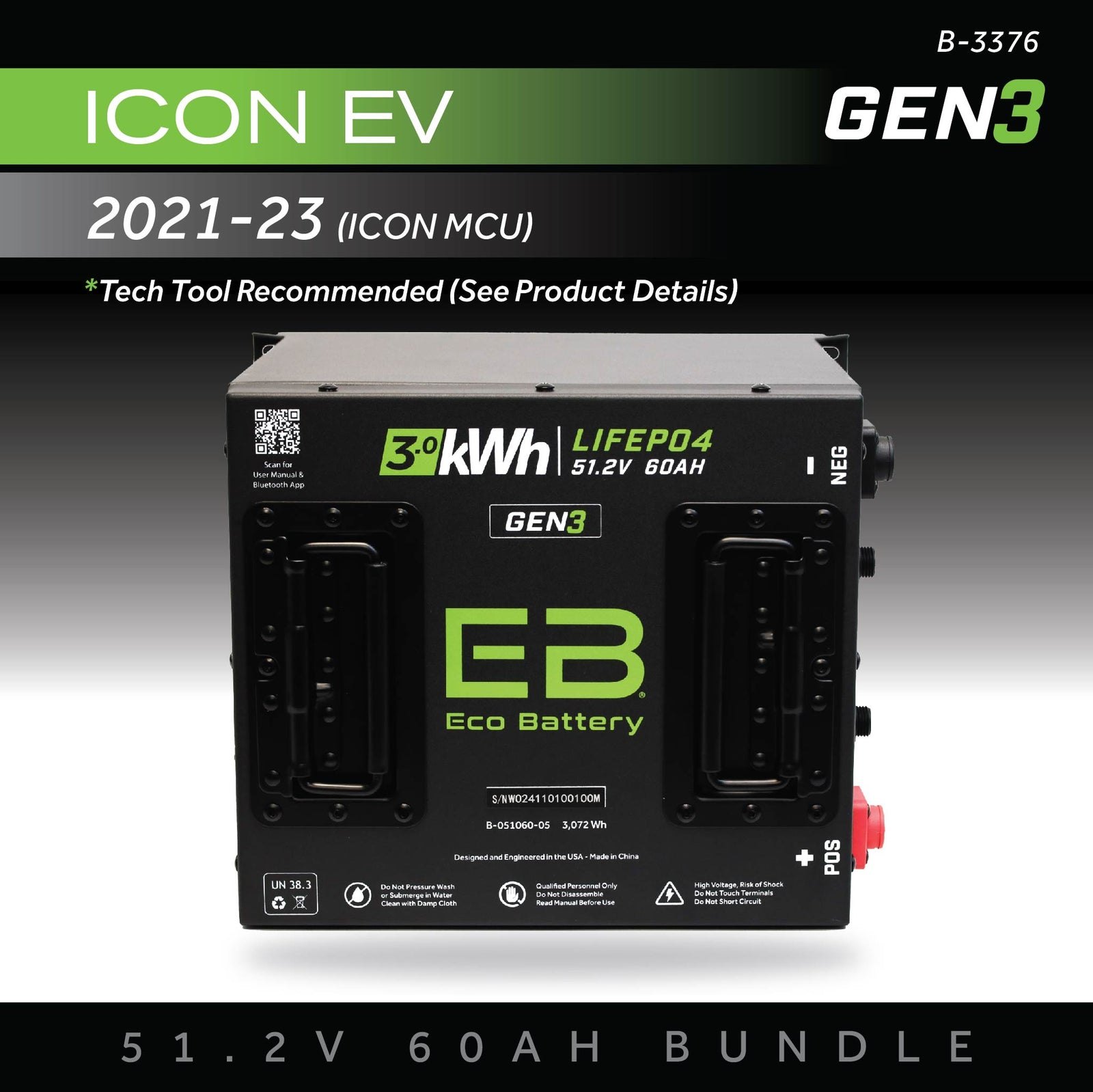

Switch a ICON EV 2021-2023 (ICON MCU) from its lead-acid set to one ECO Battery 51.2V 60Ah LiFePO4 battery from the Cube GEN3 line. It is sold as a complete kit for this cart, lithium charger included; the parts list below shows exactly what is in the box.
Key numbers: 3.0 kWh of stored energy, a battery weight of 78 lbs, 200A continuous discharge.
Standard or Heated: pick Heated for ECO’s self-heating version of the same battery. It warms the cells before charging in freezing weather, so you don’t need pads, switches or timers. Heated adds $152.
What’s included
- 51V 60Ah Cube LiFePO4 Battery GEN3 (part A-051060-05)
- 51V 19A Charger / OEM:1095 (part A-1095)
- Controller CAN Adapter / ICON / AEV (part A-3123)
- ECO Display Cluster (part A-3126)
- CAN Resistor Pass Through (part A-4209)
- Remote Button Battery Wake Up Kit (part A-4220)
- EB Extension Cord (part A-4401-240)
- Printed installation instructions
Specifications
| Brand | ECO Battery |
|---|---|
| ECO bundle number | B-3376 |
| Fits | ICON EV 2021-2023 (ICON MCU), 48V |
| Nominal voltage | 51.2V |
| Capacity | 60Ah |
| Energy | 3.0 kWh |
| Continuous discharge | 200A |
| Peak discharge | 450A (10 s) / 500A (5 s) |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cell configuration | 1P16S (16 prismatic cells) |
| Battery weight | 78 lbs (35.38 kg) |
| Battery size (L x W x H) | 13.37" x 10.18" x 11.47" |
| Ingress rating | IP67 |
| Charging temperature | 32F+ (Standard); self-heating on the Heated version |
| Discharge temperature | -4F to 140F |
| Case | Powder Coated Steel |
| Charger | 51V 19A Charger / OEM:1095 |
| Heated option | Yes (+$152) |
| Warranty | Limited Lifetime (ECO Battery) |
Warranty: Limited Lifetime Warranty from ECO Battery. Ask us for the full warranty terms before you buy.
Check your fitment: confirm your cart’s make, model, year and voltage before ordering. See the Fitment Guide or send us your cart details and we’ll confirm the right kit.
About ECO Battery
ECO Battery makes lithium batteries for golf carts and low-speed vehicles (LSVs) and positions them as an affordable replacement for a lead-acid pack. ECO also supplies factory lithium bundles to new-cart manufacturers, sells AC powertrain bundles, and publishes its own step-by-step installation videos for the most common carts.
- Several case shapes (Cube, Square, Skinny, Thru-Hole) for tight compartments.
- Cart-specific bundles for Club Car, EZGO, Yamaha, ICON and Evolution.
- ECO’s own install guides on YouTube for the DS, Precedent/Onward/Tempo, TXT and Drive.
See everything we carry from ECO Battery.
Good to know
- Charge only with the lithium charger supplied with the kit or one the maker approves; a lead-acid charger can damage a lithium battery.
- Running lights, a radio or USB ports? Most conversions need a 12V converter; check the parts list above and see accessories.
- LiFePO4 should not be charged below freezing unless the battery is heated or has low-temperature protection.
Shipping or local delivery: this battery can be shipped to you or delivered locally. See Shipping & Local Delivery for details.
