Description

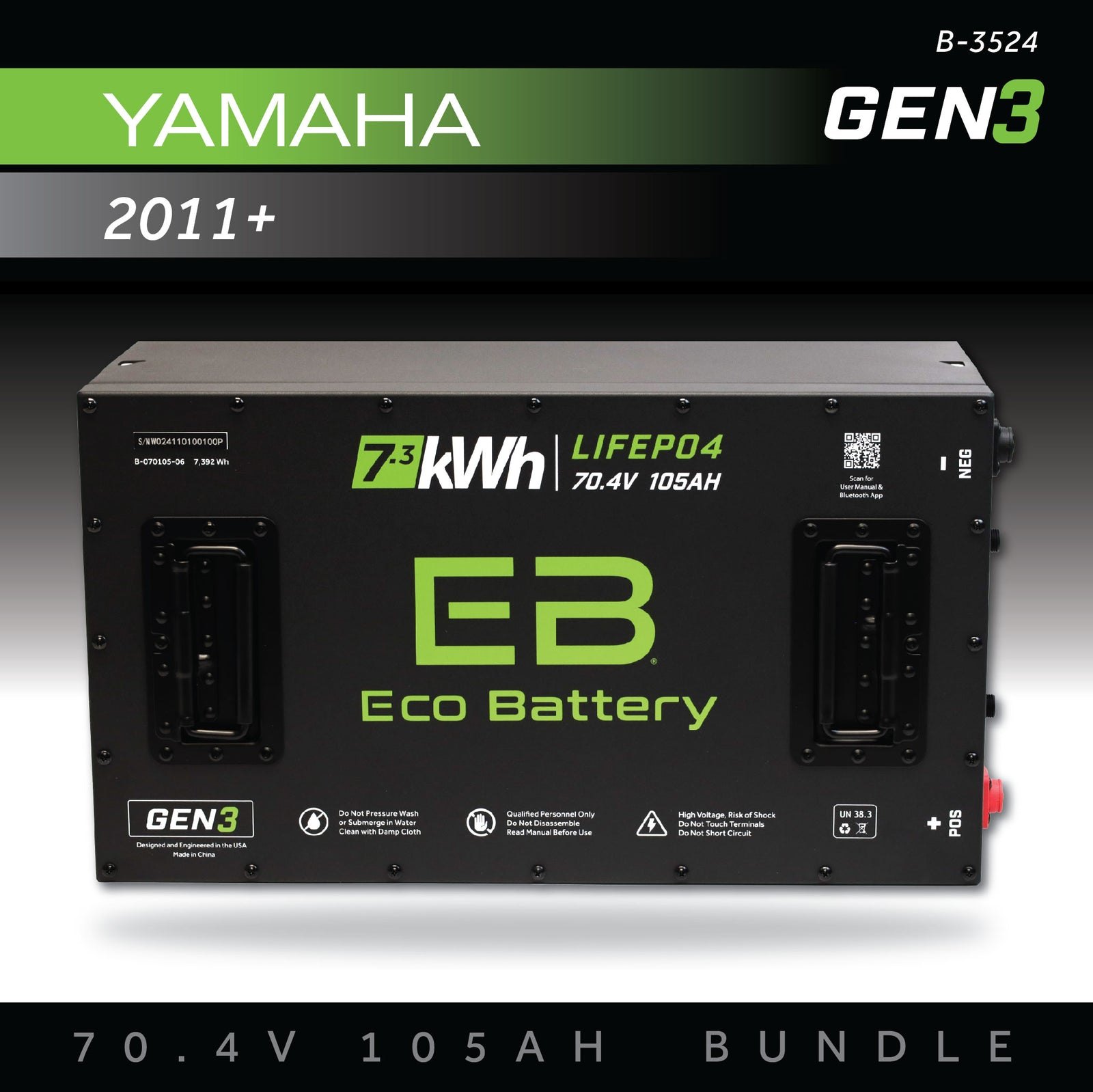

Switch a Yamaha Drive & Drive2 (2011+) from its lead-acid set to one ECO Battery 70.4V 105Ah LiFePO4 battery from the GEN3 line. It is sold as a complete kit for this cart, lithium charger included; the parts list below shows exactly what is in the box.
Key numbers: 7.3 kWh of stored energy, a battery weight of 146 lbs, 250A continuous discharge.
72V system: this pack is for a cart that already runs a 72V-class system, either from the factory or after a motor and controller upgrade rated for it. A stock 36V or 48V cart needs that drivetrain upgrade first; ask us if you’re not sure.
Standard or Heated: pick Heated for ECO’s self-heating version of the same battery. It warms the cells before charging in freezing weather, so you don’t need pads, switches or timers. Heated adds $151.
What’s included
- 70V 105Ah LiFePO4 Battery GEN3 (part A-070105-06)
- 70V 15A CAN Charger (part A-1071)
- DC-DC 12V Converter / 40V-90V Input (part A-1272)
- CAN LCD SOC Meter / Auto Baud (part A-3109)
- Yamaha Drive (2011+) Charge Port (Locking) (part A-4042)
- Battery Mounting Hardware / 5/16in (part A-8003)
- ECO Mounting Kit / Yamaha Drive / G29/2011+ (part A-8201)
- Remote Button Battery Wake Up Kit (part A-4220)
- EB Extension Cord (part A-4401-240)
- Printed installation instructions
Specifications
| Brand | ECO Battery |
|---|---|
| ECO bundle number | B-3524 |
| Fits | Yamaha Drive & Drive2 (2011+), 72V |
| Nominal voltage | 70.4V |
| Capacity | 105Ah |
| Energy | 7.3 kWh |
| Continuous discharge | 250A |
| Peak discharge | 550A (10 s) / 600A (5 s) |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cell configuration | 1P22S (22 prismatic cells) |
| Battery weight | 146 lbs (66.22 kg) |
| Battery size (L x W x H) | 22" x 12.125" x 10.625" |
| Ingress rating | IP67 |
| Charging temperature | 32F+ (Standard); self-heating on the Heated version |
| Discharge temperature | -4F to 140F |
| Case | Powder Coated Steel |
| Charger | 70V 15A CAN Charger |
| Heated option | Yes (+$151) |
| Warranty | Limited Lifetime (ECO Battery) |
Warranty: Limited Lifetime Warranty from ECO Battery. Ask us for the full warranty terms before you buy.
Check your fitment: confirm your cart’s make, model, year and voltage before ordering. See the Fitment Guide or send us your cart details and we’ll confirm the right kit.
About ECO Battery
ECO Battery makes lithium batteries for golf carts and low-speed vehicles (LSVs) and positions them as an affordable replacement for a lead-acid pack. ECO also supplies factory lithium bundles to new-cart manufacturers, sells AC powertrain bundles, and publishes its own step-by-step installation videos for the most common carts.
- Several case shapes (Cube, Square, Skinny, Thru-Hole) for tight compartments.
- Cart-specific bundles for Club Car, EZGO, Yamaha, ICON and Evolution.
- ECO’s own install guides on YouTube for the DS, Precedent/Onward/Tempo, TXT and Drive.
See everything we carry from ECO Battery.
Good to know
- Charge only with the lithium charger supplied with the kit or one the maker approves; a lead-acid charger can damage a lithium battery.
- Running lights, a radio or USB ports? Most conversions need a 12V converter; check the parts list above and see accessories.
- LiFePO4 should not be charged below freezing unless the battery is heated or has low-temperature protection.
Shipping or local delivery: this battery can be shipped to you or delivered locally. See Shipping & Local Delivery for details.
