Description

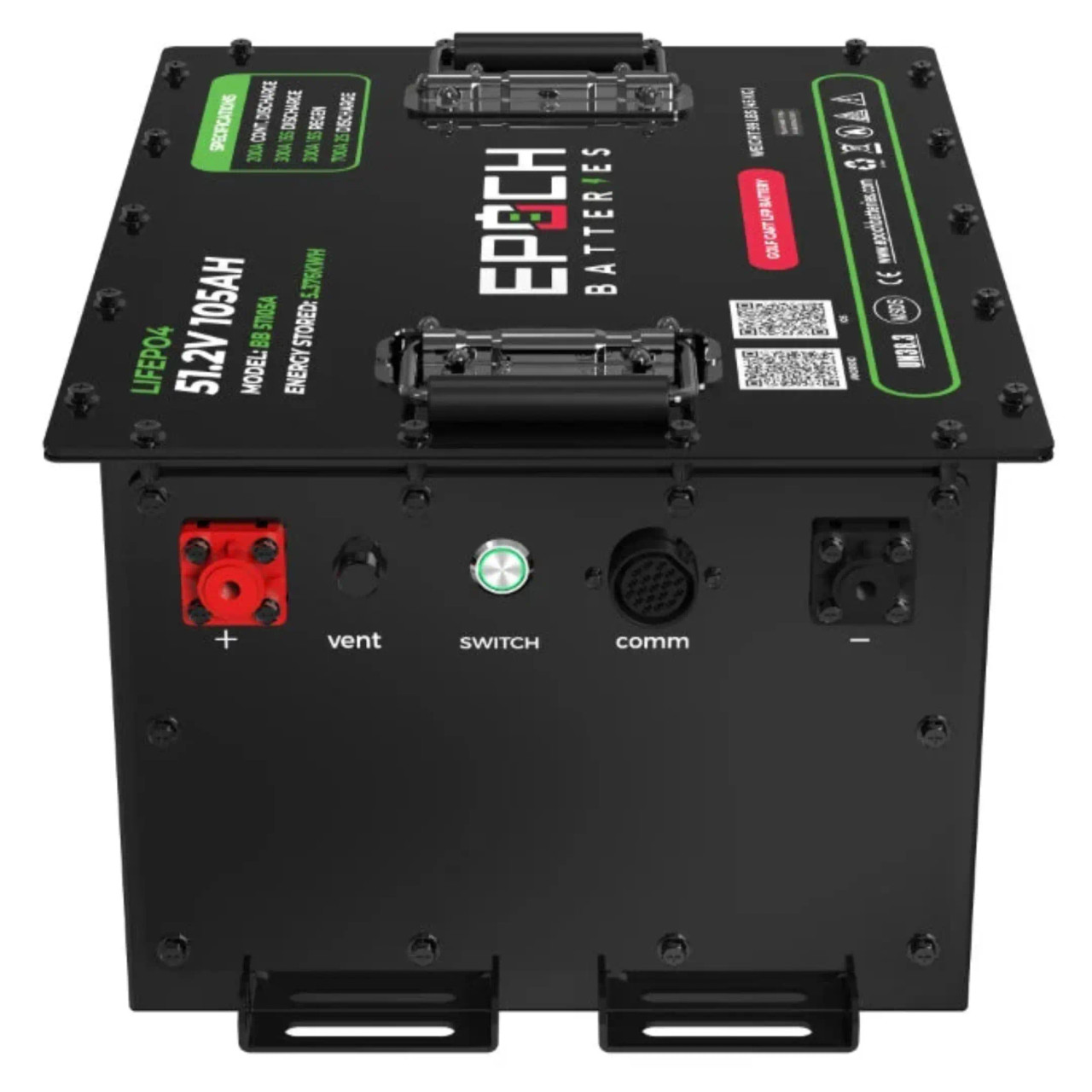

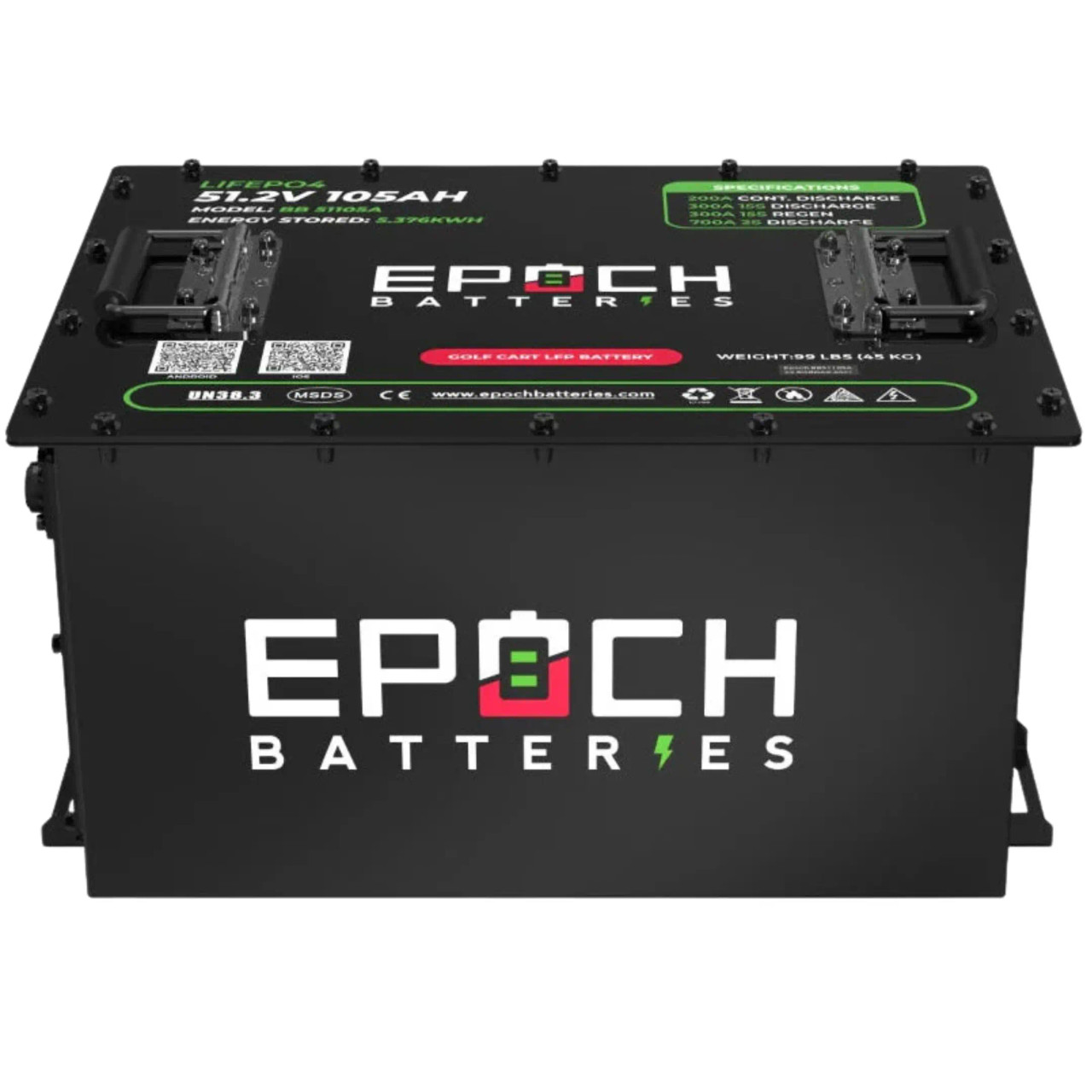

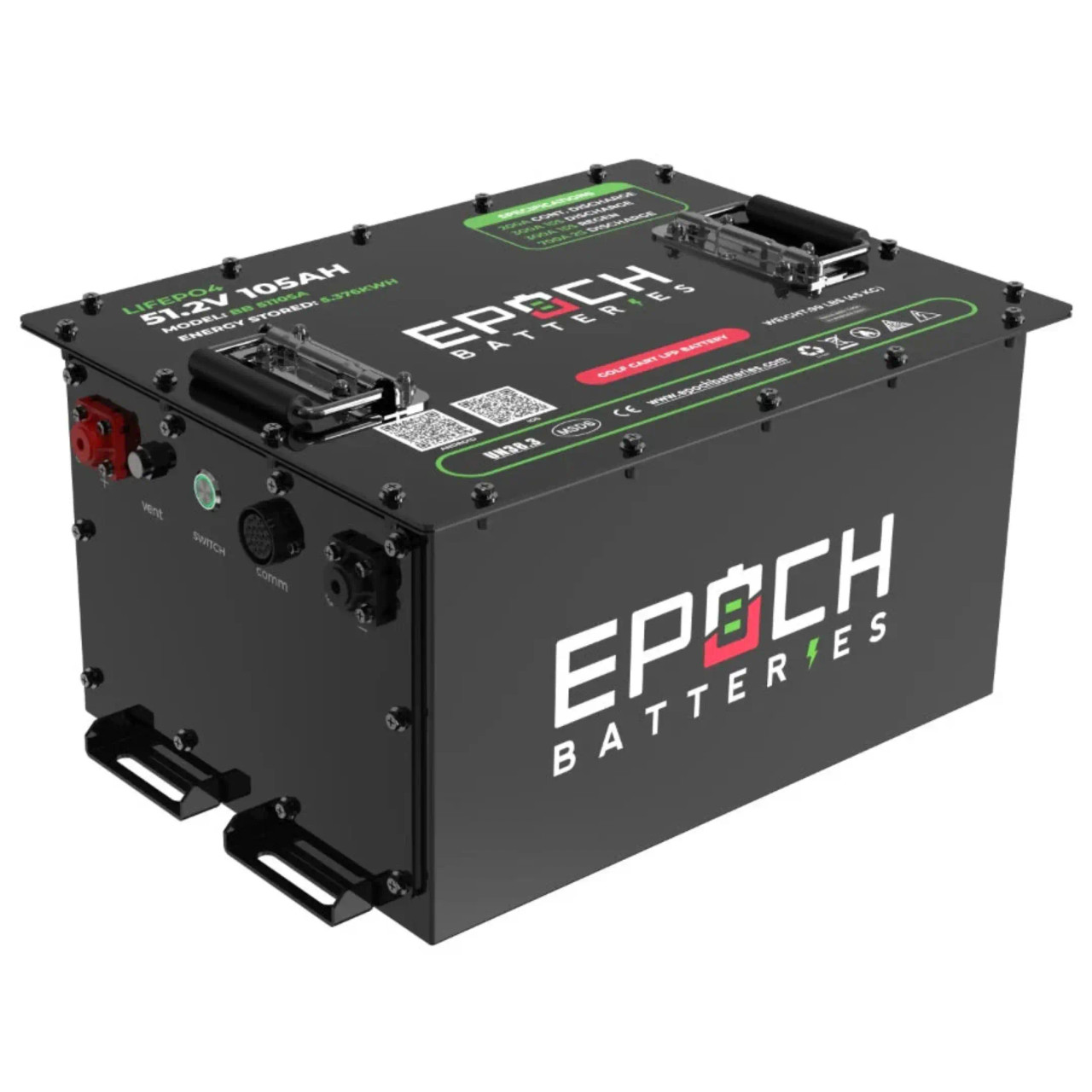

Switch a 48-volt Club Car Onward from a lead-acid set to one EPOCH Batteries 48V 105Ah LiFePO4 battery from the LiMax line. It is sold as a complete kit for this cart, lithium charger included; the parts list below shows exactly what is in the box.
Key numbers: 5.376 kWh of stored energy, a battery weight of 99 lbs, 200A continuous discharge.
Estimated range: about 21-35 miles per charge on flat ground (our estimate from the battery’s stored energy). Epoch estimates 35 to 45+ miles per charge for many standard carts. Your range depends on seats and passengers, lift kit and tire size, hills, speed and accessories.
What’s included
- 48V 105Ah LiFePO4 battery

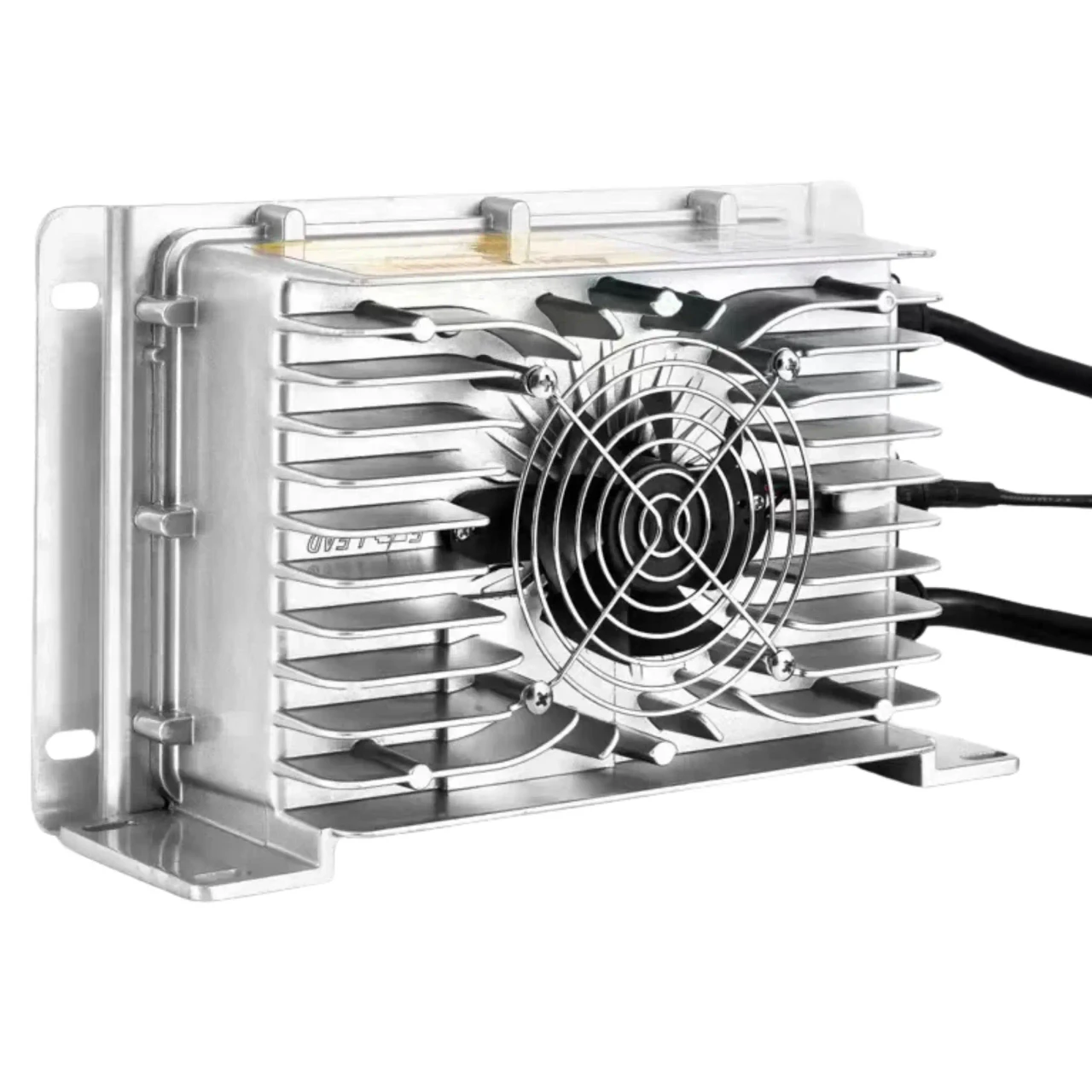

- 48V 15A waterproof lithium charger
- 10 ft heavy-duty extension cord

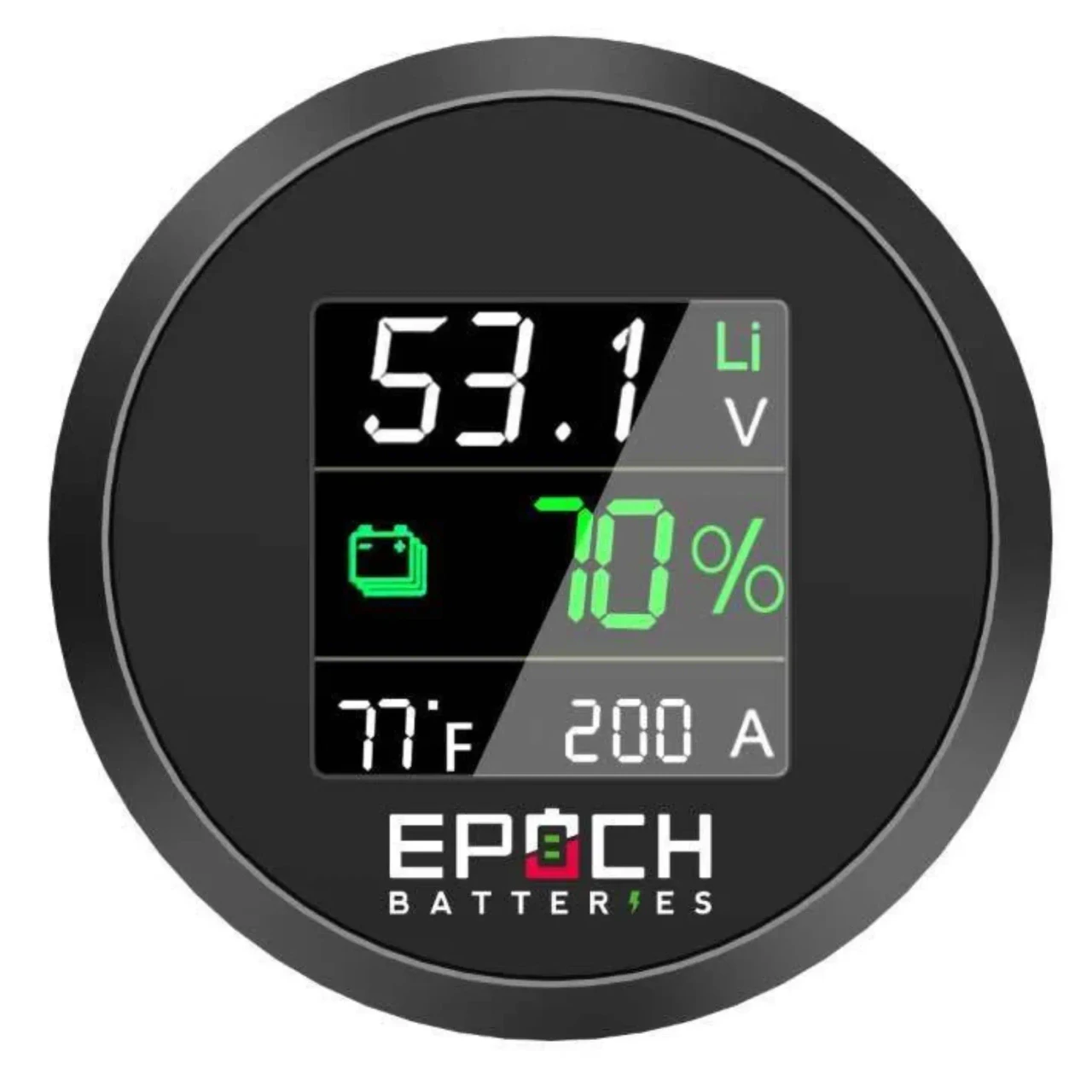

- Digital Bluetooth battery gauge
- 6 ft remote on/off power switch with wiring harness
- 48V to 12V step-down converter (25A)
- Cart-specific charge port plug
- Cart-specific mounting brackets
- Epoch Li-Ion app (free, iOS and Android)
Epoch's "What's in the box" list for its 48V 105Ah kit. Source: www.epochbatteries.com product page.
Specifications
| Brand | EPOCH Batteries |
|---|---|
| Fits | Club Car Onward, 48V |
| Nominal voltage | 51.2V |
| Capacity | 105Ah |
| Energy | 5.376 kWh |
| Continuous discharge | 200A |
| Peak discharge | 300A (15 s) |
| Chemistry | Prismatic LiFePO4 |
| Cell configuration | 1P16S |
| Terminals | M8 Female |
| Battery weight | 99 lbs (44.90Kg) |
| Battery size (L x W x H) | 18.1″ x 13.4″ x 9.8″ |
| Ingress rating | IP67 |
| Charging temperature | 32°F to 131°F (0-55°C) |
| Bluetooth | Yes (battery monitoring) |
| Case | Powder Coated Steel |
| Max charge current | 100A Continuous, 300A (up to 15 Seconds, regenerative braking) |
| Max charge voltage | 58.4V |
| Operating voltage range | 40 – 58.4V |
| Discharge temperature | -10°C (14°F) / 55°C (131°F) |
| Cycle life | 3,500+ cycles (EPOCH figure) |
| Series / parallel | Parallel only, max 2 (210Ah); series not supported |
| 12V converter | Included (25A step-down) |
| Warranty | 11-year limited (EPOCH Batteries) |
Warranty: 11-Year Warranty from EPOCH Batteries. Ask us for the full warranty terms before you buy.
Check your fitment: confirm your cart’s make, model, year and voltage before ordering. See the Fitment Guide or send us your cart details and we’ll confirm the right kit.
About EPOCH Batteries
EPOCH Batteries is a veteran-owned company that designs and engineers its LiFePO4 batteries in the USA. It focuses on marine, RV and golf cart power, with an advanced BMS, Bluetooth monitoring and heated models, and U.S.-based support.
- Veteran-owned, designed and engineered in the USA.
- Bluetooth monitoring and heated options on many models.
- Golf cart kits plus marine and RV batteries from one brand.
See everything we carry from EPOCH Batteries.
Good to know
- Charge only with the lithium charger supplied with the kit or one the maker approves; a lead-acid charger can damage a lithium battery.
- Running lights, a radio or USB ports? Most conversions need a 12V converter; check the parts list above and see accessories.
- LiFePO4 should not be charged below freezing unless the battery is heated or has low-temperature protection.
Shipping: this battery ships to you. See Shipping & Delivery for details.



















Reviews
There are no reviews yet.
