Description

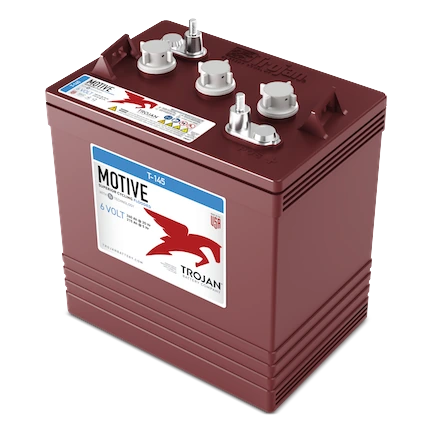

The Trojan T-145 is the highest-capacity 6V battery in Trojan’s golf lineup: 260 Ah at the 20-hour rate and 530 minutes at 25 A. It uses the taller GC2H case (11.91 in high, about 3/4 in taller than a GC2), so measure the height of your battery compartment, seat clearance and hold-downs before you order.
Choose your terminal. This battery comes with ELPT or EHPT or EAPT or EUT terminals, all at the same price. ELPT is a low-profile threaded stud (5/16 in bolt). EHPT is a taller threaded stud (5/16 in bolt). EAPT is a tapered automotive-style post. EUT is an automotive post with a threaded stud on top. Pick the one that matches your current batteries so your cables bolt straight on. See the Fitment Guide or send us a photo if you’re not sure.
Specifications
| Trojan model | T-145 |
|---|---|
| Product line | Signature Line |
| Group size | GC2H |
| Voltage | 6V |
| Terminal options | ELPT (embedded low profile terminal), EHPT (embedded high profile terminal), EAPT (embedded automotive post terminal), EUT (embedded universal terminal) |
| Capacity @ 25 A (80°F) | 530 minutes |
| Capacity @ 75 A (80°F) | 145 minutes |
| Capacity (20-hour rate) | 260 Ah |
| Capacity (5-hour / 100-hour rate) | 215 Ah / 287 Ah |
| Energy (100-hour rate) | 1.72 kWh |
| Technology | Flooded lead-acid, deep cycle |
| Watering | HydroLink single-point watering compatible |
| Dimensions (L x W x H) | 10.30 in x 7.13 in x 11.91 in (262 x 181 x 303 mm) |
| Weight | 72 lb |
| Free-replacement warranty | 12 months |
Ratings, dimensions and weight are from Trojan’s official T-145 data sheet. Height is measured to the top of the terminal and varies slightly by terminal type. The warranty period is from Trojan’s US and Canada limited warranty.
Fitment
For golf carts that run 6V lead-acid batteries: six 6V batteries make a 36V cart, and eight make a 48V cart. Order one battery for each position and replace the whole set at once. Check that the group size (GC2H) and terminal type match your current batteries and cables, or send us a photo of a battery label and we’ll confirm.
Care
Trojan’s advice for flooded batteries: charge after every use and don’t leave the pack sitting discharged. Check the electrolyte level regularly and add distilled water only after charging, never before (unless the plates are exposed). Keep the tops clean and dry, the terminals free of corrosion and the connections tight at the torque on the data sheet. For storage, charge fully first and recharge every few weeks; Trojan rates self-discharge at 5-15% a month, faster in hot weather.
Warranty
12-month free-replacement warranty from Trojan against defects in materials and workmanship, for the original purchaser, from the date on your receipt. Trojan’s warranty excludes damage from low electrolyte, over- or under-charging, freezing and similar neglect, so keep up with watering and charging. See trojanbattery.com for full warranty terms.
Shipping and delivery
Lead-acid batteries ship by truck freight. Choose “Freight quote” at checkout and we’ll call you with the freight cost before we charge any shipping, or choose local delivery if you’re in our delivery area. See our Shipping page for the local delivery area and fee.
Core charge
Each flooded or AGM lead-acid battery adds an $18 core charge at checkout. Lithium batteries, chargers, and parts do not. The core charge is refunded when we receive your old lead-acid battery. It’s waived with local delivery when the old battery is removed and ready for pickup.
